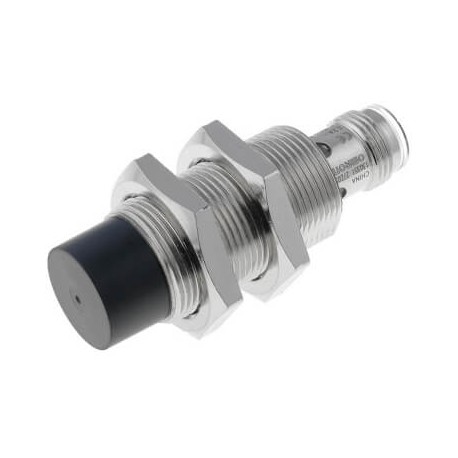

OMRON E2A-M18KN16-M1-B3 E2A-M18KN16-M1-B3 244374 E2AM18KN16M1B3OMS OMRON Short 4h NoEnr 16mm M18 PNP NO+NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M18KN16-M1-B3 244374 E2AM18KN16M1B3OMS OMRON Short 4h NoEnr 16mm M18 PNP NO+NC Connector M12

E2A-M18KN16-M1-B3

244374

E2AM18KN16M1B3OMS

OMRON

1 Pcs.

Short 4h NoEnr 16mm M18 PNP NO+NC Connector M12 Short 4h NoEnr 16mm M18 PNP NA+NC M12 Connector Proximity sensor, inductive, brass-nickel, short body, M18, non-shielded, 16 mm, DC, 4-wire, PNP-Antivalent (NO+NC), M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance16 mm
Output typePNP
Operation modeNO + NC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length53 mm
Thread length29 mm

Accessories

XS5F-D421-D80-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 2 m
XS5F-D421-D80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5F-D421-G80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 5 m
XS5F-D421-G80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
XS5F-D421-J80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 10 m
XS5F-D421-J80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 10 m
XS5W-D421-C81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 1 m
XS5W-D421-C81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 1 m
XS5W-D421-D81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 2 m
XS5W-D421-D81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5W-D421-G81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 5 m
XS5W-D421-G81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
