E2A-M12LS04-WP-C1 2M 133413 E2AM12LS04WPC12M OMRON Long-3h Enr 4mm M12 NPN NA Cable 2m
E2A-M12LS04-WP-C1 2M
133413
E2AM12LS04WPC12M
OMRON
1 Pcs.
Automation > Inductive proximity switch
E2A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

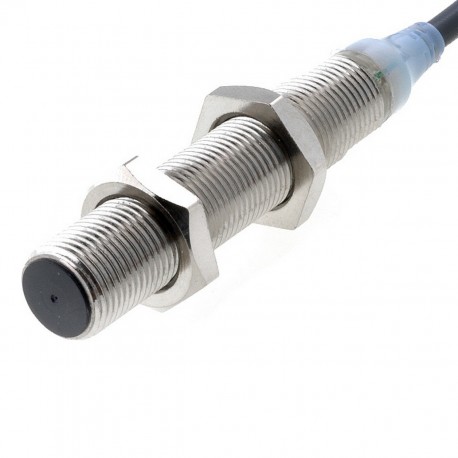

Omron E2A-M12LS04-WP-C1 2M is a proximity switch designed for non-contact object detection in automated assembly lines and material handling equipment. Inductive sensors of this type provide reliable position feedback by sensing metal components within industrial machinery.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Size: M12
- Mounting type: Flush
- Sensing distance: 4 mm
- Output type: NPN
- Operation mode: NO
- Connection method: Cable
- Material housing: Brass, nickel plated
- Cable specifications: PVC
- Cable length: 2 m
- Overall length: 72 mm
- Thread length: 56 mm
More info
▲Specifications
| Size | M12 |
| Mounting type | Flush |
| Sensing distance | 4 mm |
| Output type | NPN |
| Operation mode | NO |
| Connection method | Cable |
| Material housing | Brass, nickel plated |
| Cable specifications | PVC |
| Cable length | 2 m |
| Overall length | 72 mm |
| Thread length | 56 mm |
