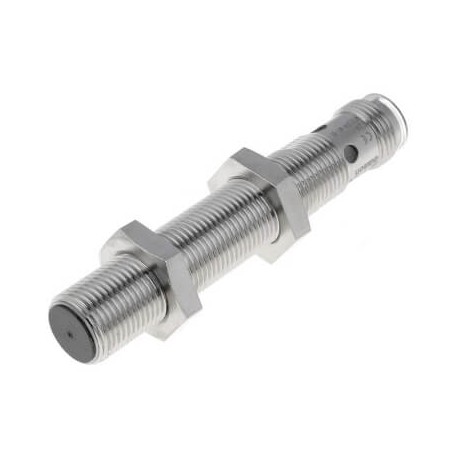

OMRON E2A-M12LS04-M1-B2 E2A-M12LS04-M1-B2 143545 E2AM12LS04M1B2 OMRON Long-3h Enr 4mm M12 PNP NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12LS04-M1-B2 143545 E2AM12LS04M1B2 OMRON Long-3h Enr 4mm M12 PNP NC Connector M12

E2A-M12LS04-M1-B2

143545

E2AM12LS04M1B2

OMRON

1 Pcs.

Long-3h Enr 4mm M12 PNP NC Connector M12 Proximity sensor, inductive, brass-nickel, long body, M12, shielded, 4mm, DC, 3-wire, PNP-NC, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron proximity sensor, inductive (E2A-M12LS04-M1-B2) provides dependable target detection and position sensing in automated machinery applications, helping streamline operational workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Flush
  • Sensing distance: 4 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 70 mm
  • Thread length: 56 mm

More info

▲

Specifications

SizeM12
Mounting typeFlush
Sensing distance4 mm
Output typePNP
Operation modeNC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length70 mm
Thread length56 mm
