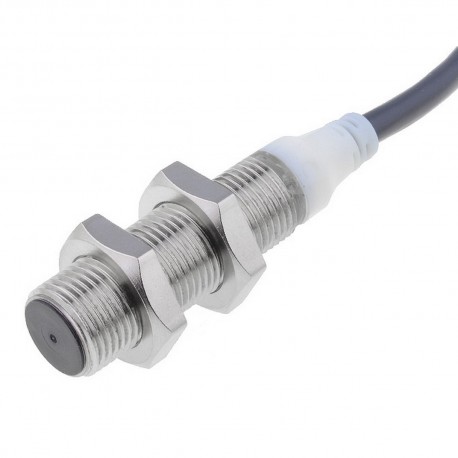

OMRON E2A-M12KS04-WP-C2 2M E2A-M12KS04-WP-C2 2M 133469 E2AM12KS04WPC22M OMRON Short-3h Enr 4mm M12 NPN NC Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12KS04-WP-C2 2M 133469 E2AM12KS04WPC22M OMRON Short-3h Enr 4mm M12 NPN NC Cable 2m

E2A-M12KS04-WP-C2 2M

133469

E2AM12KS04WPC22M

OMRON

1 Pcs.

Short-3h Enr 4mm M12 NPN NC Cable 2m Proximity sensor, inductive, brass-nickel, short body, M12, shielded, 4mm, DC, 3-wire, NPN-NC, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive proximity sensor, part number E2A-M12KS04-WP-C2 2M, is utilized in industrial automation environments to detect the presence of metallic targets without physical contact. These sensors provide reliable position feedback and object counting for automated machinery, conveyor systems, and assembly lines. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Flush
  • Sensing distance: 4 mm
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Cable
  • Material housing: Brass, nickel plated
  • Cable specifications: PVC
  • Cable length: 2 m
  • Overall length: 50 mm
  • Thread length: 34 mm

More info

▲

Specifications

SizeM12
Mounting typeFlush
Sensing distance4 mm
Output typeNPN
Operation modeNC
Connection methodCable
Material housingBrass, nickel plated
Cable specificationsPVC
Cable length2 m
Overall length50 mm
Thread length34 mm
