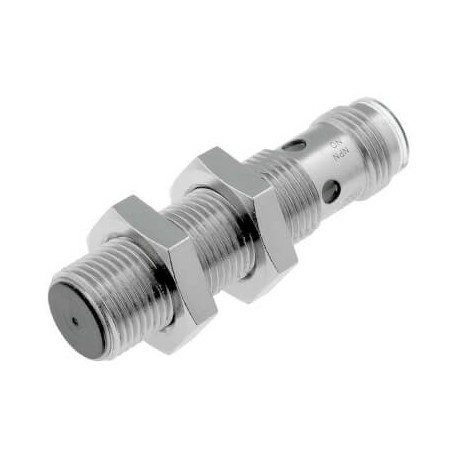

OMRON E2A-M12KS04-M1-C1 E2A-M12KS04-M1-C1 133485 E2AM12KS04M1C1 OMRON Short-3h Enr 4mm M12 NPN NA M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12KS04-M1-C1 133485 E2AM12KS04M1C1 OMRON Short-3h Enr 4mm M12 NPN NA M12 Connector

E2A-M12KS04-M1-C1

133485

E2AM12KS04M1C1

OMRON

1 Pcs.

Short-3h Enr 4mm M12 NPN NA M12 Connector Short 3h Enr 4mm M12 NPN NA Connector M12 Proximity sensor, inductive, brass-nickel, short body, M12, shielded, 4mm, DC, 3-wire, NPN-NO, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron inductive proximity sensor model E2A-M12KS04-M1-C1 offers reliable non-contact target sensing for automated machinery, assembly lines, and robotics installations. Industrial systems utilize these threaded metal sensors to maintain precise mechanical alignment, cycle counting, and end-of-travel detection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Flush
  • Sensing distance: 4 mm
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 48 mm
  • Thread length: 34 mm

More info

▲

Specifications

SizeM12
Mounting typeFlush
Sensing distance4 mm
Output typeNPN
Operation modeNO
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length48 mm
Thread length34 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
