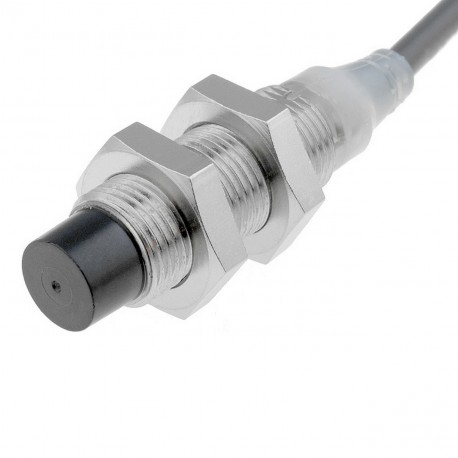

OMRON E2A-M12KN08-WP-C2 2M E2A-M12KN08-WP-C2 2M 133470 E2AM12KN08WPC22M OMRON Short-3h NoEnr 8mm M12 NPN NC Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12KN08-WP-C2 2M 133470 E2AM12KN08WPC22M OMRON Short-3h NoEnr 8mm M12 NPN NC Cable 2m

E2A-M12KN08-WP-C2 2M

133470

E2AM12KN08WPC22M

OMRON

1 Pcs.

Short-3h NoEnr 8mm M12 NPN NC Cable 2m Proximity sensor, inductive, brass-nickel, short body, M12, non-shielded, 8mm, DC, 3-wire, NPN-NC, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive proximity sensor (E2A-M12KN08-WP-C2 2M) is widely deployed in industrial environments to monitor rotational speed, detect machine parts, and manage automated positioning sequences.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Non-flush
  • Sensing distance: 8 mm
  • Output type: NPN
  • Operation mode: NC
  • Connection method: Cable
  • Material housing: Brass, nickel plated
  • Cable specifications: PVC
  • Cable length: 2 m
  • Overall length: 50 mm
  • Thread length: 27 mm

More info

▲

Specifications

SizeM12
Mounting typeNon-flush
Sensing distance8 mm
Output typeNPN
Operation modeNC
Connection methodCable
Material housingBrass, nickel plated
Cable specificationsPVC
Cable length2 m
Overall length50 mm
Thread length27 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
