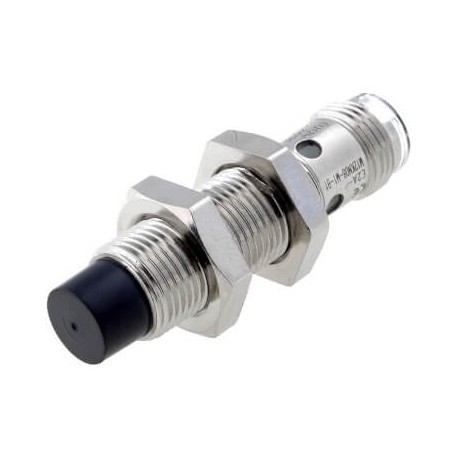

OMRON E2A-M12KN08-M1-B2 E2A-M12KN08-M1-B2 149004 E2AM12KN08M1B2 OMRON Short-3h NoEnr 8mm M12 PNP NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12KN08-M1-B2 149004 E2AM12KN08M1B2 OMRON Short-3h NoEnr 8mm M12 PNP NC Connector M12

E2A-M12KN08-M1-B2

149004

E2AM12KN08M1B2

OMRON

1 Pcs.

Short-3h NoEnr 8mm M12 PNP NC Connector M12 Proximity sensor, inductive, brass-nickel, short body, M12, non-shielded, 8mm, DC, 3-wire, PNP-NC, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized for precise object detection in factory automation, the Omron E2A-M12KN08-M1-B2 inductive proximity sensor registers metallic targets without physical contact. These units are commonly installed on machinery to track travel limits, monitor rotating components, and verify assembly sequencing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M12
  • Mounting type: Non-flush
  • Sensing distance: 8 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 48 mm
  • Thread length: 27 mm

More info

▲

Specifications

SizeM12
Mounting typeNon-flush
Sensing distance8 mm
Output typePNP
Operation modeNC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length48 mm
Thread length27 mm
