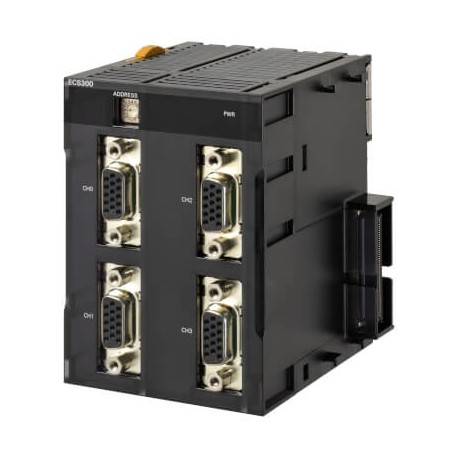

OMRON CK3W-ECS300 CK3W-ECS300 CK3W0037F CK3WECS300 OMRON Encoder Input Unit for CK3M, Serial encoder 4 channels, BiSS-C, Endat.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CK3W-ECS300 CK3W0037F CK3WECS300 OMRON Encoder Input Unit for CK3M, Serial encoder 4 channels, BiSS-C, Endat..

CK3W-ECS300

CK3W0037F

CK3WECS300

OMRON

1 Pcs.

Encoder Input Unit for CK3M, Serial encoder 4 channels, BiSS-C, Endat2.2, and R88M-1Lx/-1Mx Motor built-in encoder

Automation > PLC function/technology module
CK3M Multi-axis Controller

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An encoder input unit processes high-resolution serial feedback signals from rotary and linear encoders, transmitting accurate position and velocity data to advanced motion controllers. The Omron CK3W-ECS300 supports multi-channel setups with protocols like BiSS-C and EnDat to ensure reliable closed-loop feedback in automated motion cells. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for counting: Yes
  • Suitable for welding control: Yes
  • Suitable for multi-axis positioning: Yes
  • Suitable for flux measurement: No
  • Suitable for weighing: No
  • Suitable for incremental data detection: No
  • Suitable for cam controller: Yes
  • Suitable for CNC: Yes
  • Suitable for NC: Yes
  • Suitable for detection absolute value: No
  • Suitable for flying saw: Yes
  • Redundancy: No
  • Suitable for path controller: Yes
  • Suitable for safety functions: No
  • Suitable for single-axis controller: Yes
  • Suitable for flux controller: No

More info

▲
Type of moduleEncoder inputAmplifier interfaceNot ApplicableEncoder interfaceSpecial Serial ProtocolNumber of encoder input channels4Product Height (unpacked)90 mmProduct Width (unpacked)63.2 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)271.54 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
