View larger
Images are for illustrative purposes only. Please refer to data sheet for details

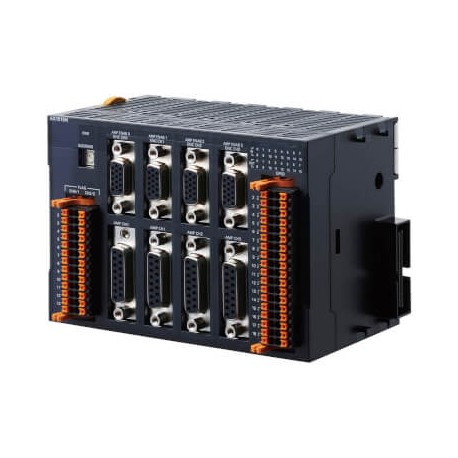

CK3W-AX1515P CK3W0015E CK3WAX1515P OMRON CK3W Axis Interface Unit. GIVES output (True DAC), Pulse + directio..
CK3W-AX1515P
CK3W0015E
CK3WAX1515P
OMRON
1 Pcs.
CK3W Axis Interface Unit. GIVES output (True DAC), Pulse + direction or phase difference, Pulse encoder / Serial encoder, PNP Output type
Automation > PLC function/technology module
CK3M Multi-axis Controller
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type of moduleAxis interfaceAmplifier interfaceTrue DACEncoder interfaceDigital quadrature / SerialNumber of encoder input channels4Number of pulse output channels4Digital output typePNPProduct Height (unpacked)90 mmProduct Width (unpacked)130 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)580.608 g
| Feature Name | Feature Value |
|---|---|
| Suitable for counting (EF003248) | Yes |
| Suitable for welding control (EF003251) | No |
| Suitable for multi-axis positioning (EF003267) | Yes |
| Suitable for flux measurement (EF003261) | No |
| Suitable for weighing (EF003249) | No |
| Suitable for incremental data detection (EF003258) | No |
| Suitable for cam controller (EF003263) | No |
| Suitable for CNC (EF003256) | No |
| Suitable for NC (EF003253) | Yes |
| Suitable for detection absolute value (EF003259) | No |
| Suitable for flying saw (EF003264) | No |
| Redundancy (EF003156) | No |
| Suitable for path controller (EF003262) | Yes |
| Suitable for safety functions (EF001597) | No |
| Suitable for single-axis controller (EF003266) | Yes |
| Suitable for multi-axis control (EF003265) | Yes |
| Suitable for single-axis positioning (EF003268) | Yes |
| Suitable for temperature control (EF008344) | No |
| Suitable for pressure control (EF003252) | No |
| Width (EF000008) | 130 mm |
| Height (EF000040) | 90 mm |
| Number of functions (EF003244) | 4 |
| Depth (EF000049) | 80 mm |
