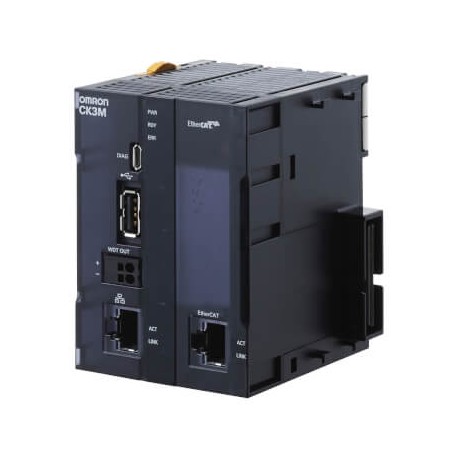

OMRON CK3M-CPU111 CK3M-CPU111 CK3M0005R CK3MCPU111 OMRON CK3M CPU, 1 GB RAM, 1 GB Flash, 4 EtherCAT axes. Up to two axis inter.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CK3M-CPU111 CK3M0005R CK3MCPU111 OMRON CK3M CPU, 1 GB RAM, 1 GB Flash, 4 EtherCAT axes. Up to two axis inter..

CK3M-CPU111

CK3M0005R

CK3MCPU111

OMRON

1 Pcs.

CK3M CPU, 1 GB RAM, 1 GB Flash, 4 EtherCAT axes. Up to two axis interface units can be connected. Expansion units can be connected

Automation > PLC CPU-module
CK3M Multi-axis Controller

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CK3M-CPU111 is a modular motion controller CPU designed to coordinate multi-axis servo systems and high-speed synchronized industrial processes. Motion controllers provide trajectory calculation and axis interpolation for robotic cells, packaging lines, and CNC machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes
  • Supporting protocol for DNP3 (EF016068): No
  • Radio standard GSM (EF008524): No

More info

▲
Type of moduleCK3M Motion Control CPUCPU clock frequency1.0 GHzMax. number of axes via EtherCAT4Number of digital inputs0Number of digital outputs0Number of analog inputs0Max. number of axis interface units4Communication port(s)EtherCAT Master, Ethernet TCP/IP, USBProduct Height (unpacked)90 mmProduct Width (unpacked)63.2 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)230 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
