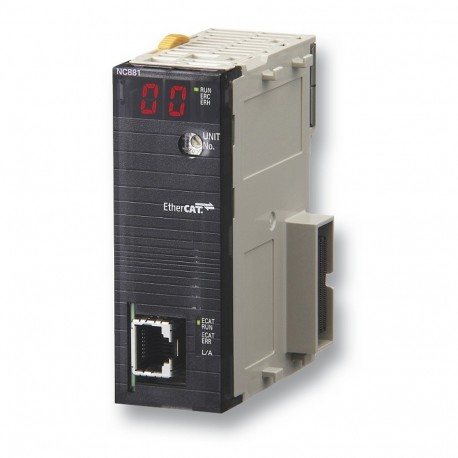

CJ1W-NC881 CJ1W0344B CJ1WNC881 OMRON Module Positioner 8 axis ETHERCAT (CJ1 and CJ2)
CJ1W-NC881
CJ1W0344B
CJ1WNC881
OMRON
1 Pcs.
Automation > PLC function/technology module
PLC based
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron CJ1W-NC881 is a specialized positioning module designed to command multi-axis motion control architectures via high-speed industrial networks. Positioner units coordinate mechanical actuators, servo systems, and stepper motors to achieve high precision and repeatability in automated equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- I/O system: CJ I/O Bus
- Expansion unit type: CPU Bus Unit
- Type of module: Positioning
- Max. number of PTP axes: 8
- Max. number of remote I/O nodes: 16
- Communication port(s): EtherCAT Master
- Height: 90 mm
- Width: 31 mm
- Depth: 65 mm
- Weight: 110 g
More info
▲Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | CPU Bus Unit |
| Type of module | Positioning |
| Max. number of PTP axes | 8 |
| Max. number of remote I/O nodes | 16 |
| I/O connection type | Other |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Communication port(s) | EtherCAT Master |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 65 mm |
| Weight | 110 g |
