OMRON CJ1W-BAT01 CJ1W-BAT01 AA043073F CJ1WBAT01,1 OMRON Battery for CPUs CJ1M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-BAT01 AA043073F CJ1WBAT01,1 OMRON Battery for CPUs CJ1M

CJ1W-BAT01

AA043073F

CJ1WBAT01.1

OMRON

1 Pcs.

Battery for CPUs CJ1M Battery for CJ1M PLCs

Automation > Accessories/spare parts for controls
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Backup batteries like the Omron CJ1W-BAT01 provide reliable short-term and long-term retention of volatile memory within programmable logic controllers during power loss. These replacement power cells are essential maintenance components used to preserve user programs and variable data in industrial automation processors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • NSH5: TFT, 5.7", 320×240 pixels
  • Bracket NS handheld for wall mounting: NSH5-ATT02
  • Cable NS handheld, RS-422, 10m UL: NSH5-422UL-10M
  • Cable NS handheld, RS-232, 10m UL: NSH5-232UL-10M
  • Cable NS handheld, RS-232, 3m UL: NSH5-232UL-3M
  • Memory card interface: 1 slot ATA Compact Flash card
  • Serial (COM1): 1×RS-232/RS-422A
  • USB Slave: For programming
  • Line voltage: 24 VDC ±15%
  • Power consumption: 10 W max.
  • Battery: CJ1W-BAT01
  • Battery lifetime: 5 years (at 25°C)
  • Enclosure rating: IP65 1
  • Obtained standards: UL 1604 Class 1 Diff. 2, cUL, CE, NEMA equivalent
  • Operating environment: No corrosive gases
  • Noise immunity: Conforming to IEC 61000-4-4: 2 kV (power supply line)

More info

▲
Features

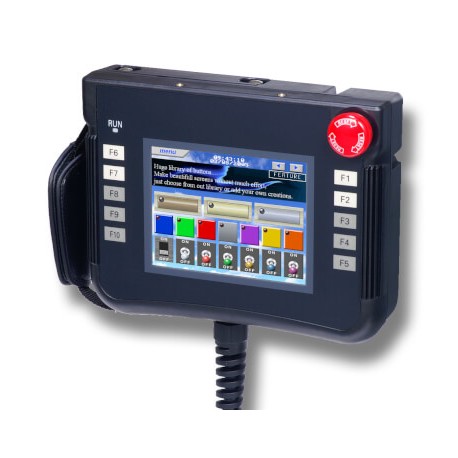

NS5 Handheld, suited for use in harsh conditions

The NS series has evolved into a mobile format. Based on the standard 5.7” TFT color version, we can offer a handheld version of the NS series. Offering 10 Function keys for most used functions and with a protection degree of IP65 it is the product to use in harsh environment where freedom of movement is needed.

  • Re-use projects of non-mobile NS products
  • 10 Function keys, 4 hardwired for inching
  • Emergency switch on front plus enable switch on back of unit
  • Well protected against water, IP65
  • Compact Flash, Serial and USB interface

Smart Active Parts

smart active parts sol

One great advantage with the NS is that you can make use of Omron unique Smart Active Parts (SAP) that save you time when configuring, commissioning and maintaining your machine. SAP are pre-programmed, pre-tested visualization objects with embedded communication code, bringing 'drag and drop' simplicity to Human Machine Interface design.

Ordering information

Type

Order code

NSH5

TFT, 5.7", 320×240 pixels

Black

NSH5-SQR10B-V2

Accessories

Type

Order code

Bracket NS handheld protecting emergency button from accidental activation

NSH5-ATT01

Bracket NS handheld for wall mounting

NSH5-ATT02

Cable NS handheld, RS-422, 10m UL

NSH5-422UL-10M

Cable NS handheld, RS-232, 10m UL

NSH5-232UL-10M

Cable NS handheld, RS-232, 3m UL

NSH5-232UL-3M

Specifications

Memory card interface

1 slot ATA Compact Flash card

Serial (COM1)

1×RS-232/RS-422A

USB Slave

For programming

Line voltage

24 VDC ±15%

Power consumption

10 W max.

Battery

CJ1W-BAT01

Battery lifetime

5 years (at 25°C)

Enclosure rating

IP651

Obtained standards

UL 1604 Class 1 Diff. 2, cUL, CE, NEMA equivalent

Operating environment

No corrosive gases

Noise immunity

Conforming to IEC 61000-4-4: 2 kV (power supply line)

Ambient operating temperature

0 to 40°C

Ambient operating humidity

35% to 85% max. (with no condensation)

Vibration resistance (during operation)

10 to 57 Hz with amplitude of 0.075 mm, 57 to 150 Hz with acceleration of 9.8 m/s2 three minutes each in X, Y, and Z directions

Shock resistance (during operation)

147 m/s2 three times each in X, Y, and Z directions

Drop test1

Dropped from 1 m. Conforming to JIS B 3502/IEC61131-2


1.see manual for details.
