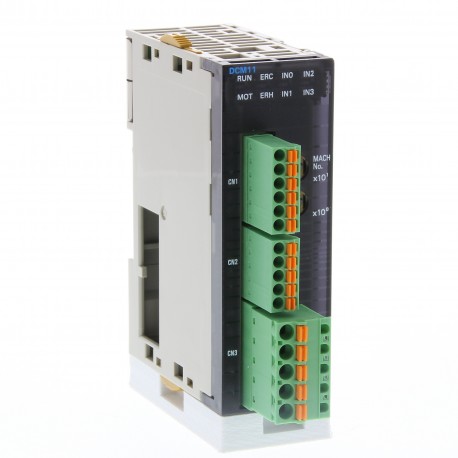

OMRON CJ1W-DCM11-E CJ1W-DCM11-E CJ1W9052C CJ1WDCM11E OMRON Module for Motor Control 24 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-DCM11-E CJ1W9052C CJ1WDCM11E OMRON Module for Motor Control 24 VDC

CJ1W-DCM11-E

CJ1W9052C

CJ1WDCM11E

OMRON

1 Pcs.

Module for Motor Control 24 VDC DC Motor Control Unit, 24 V, 4 A (10 A peak), PWM control, plug-in terminals

Automation > PLC function/technology module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CJ1W-DCM11-E is a module for motor control designed to interface directly with industrial automation controller racks. Motor control modules process internal logic commands to manage speed, direction, and operational states of connected actuators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • I/O system: CJ I/O Bus
  • Expansion unit type: Special I/O Unit
  • Type of module: Motion control
  • Digital input type: PNP
  • Digital output type: PNP, PWM
  • Number of encoder input channels: 0
  • Max. encoder input frequency: 0 kHz
  • Number of pulse output channels: 1
  • I/O connection type: Screwless clamp
  • Number of I/O connectors: 3
  • Height: 90 mm
  • Width: 31 mm
  • Depth: 89 mm
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Suitable for counting (EF003248): Yes
  • Suitable for welding control (EF003251): No

More info

▲

Specifications

I/O systemCJ I/O Bus
Expansion unit typeSpecial I/O Unit
Type of moduleMotion control
Digital input typePNP
Digital output typePNP, PWM
Number of encoder input channels0
Max. encoder input frequency0 kHz
Number of pulse output channels1
I/O connection typeScrewless clamp
Number of I/O connectors3
Detachable I/O connector
Suitable for safety functions
Height90 mm
Width31 mm
Depth89 mm
