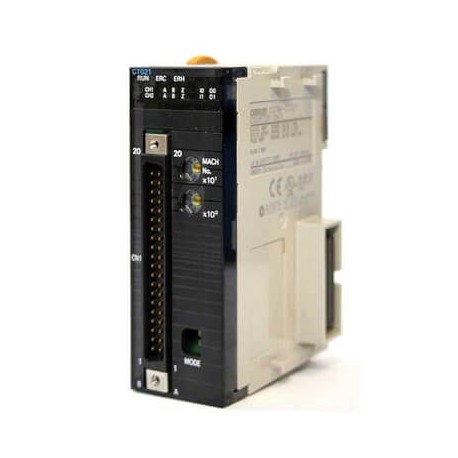

OMRON CJ1W-CT021 CJ1W-CT021 CJ1W0320E 315605 OMRON High Speed Counter Module 2 Inputs 500KHz View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-CT021 CJ1W0320E 315605 OMRON High Speed Counter Module 2 Inputs 500KHz

CJ1W-CT021

CJ1W0320E

CJ1WCT021.1

OMRON

1 Pcs.

Module Counter high speed 2-input 500KHz High-speed counter unit, 2 axes, 500 kHz, RS422 line driver or open collector input

Automation > PLC function/technology module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CJ1W-CT021 high-speed counter module processes rapid input signals from encoders to deliver precise position and frequency tracking in control architectures. Counter cards of this type integrate into programmable logic setups to support real-time monitoring of mechanical movement, conveyor pacing, and rotational velocity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Suitable for counting (EF003248): Yes
  • Suitable for welding control (EF003251): No
  • Suitable for multi-axis positioning (EF003267): No
  • Suitable for flux measurement (EF003261): No
  • Suitable for weighing (EF003249): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Suitable for incremental data detection (EF003258): Yes
  • Suitable for cam controller (EF003263): No
  • Suitable for SSI (EF003254): No
  • Suitable for CNC (EF003256): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Suitable for NC (EF003253): No
  • Suitable for detection absolute value (EF003259): No
  • Suitable for flying saw (EF003264): No
  • Redundancy (EF003156): No

More info

▲
I/O systemCJ I/O BusExpansion unit typeSpecial I/O UnitType of moduleEncoder inputDigital input typeIncremental encoder, Line driver (RS-422), Open collectorDigital output typeNPN, PNPNumber of encoder input channels2Max. encoder input frequency500 kHzNumber of pulse output channels0Max. pulse output frequency0 kHzI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsCommunication port(s)NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals2Product Height (unpacked)95.4 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)83.6 mmProduct Weight (unpacked)94 g
