View larger
Images are for illustrative purposes only. Please refer to data sheet for details

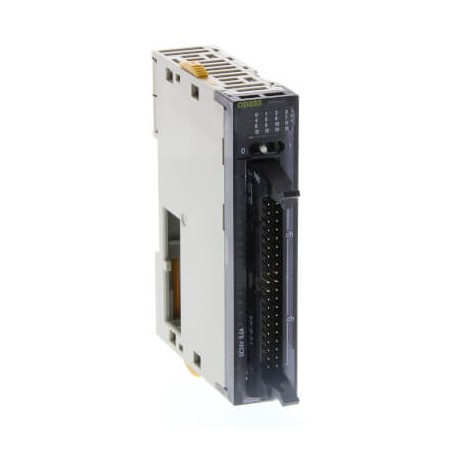

CJ1W-OD233 CJ1W3016D CJ1WOD233CHN OMRON Module 32 Outputs NPN THOUSAND
CJ1W-OD233
CJ1W3016D
CJ1WOD233CHN
OMRON
1 Pcs.
Module 32 Outputs NPN THOUSAND
Digital output unit, 32 x transistor outputs, NPN, 0.5 A, 24 VDC, MIL40 connector (not included)
Automation > PLC digital I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 32 |
| Digital output type | NPN |
| Permitted voltage at output | 10.2-26.4 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Number of IOV (V+) terminals | 4 |
| Number of IOG (V-) terminals | 4 |
| Number of COM terminals | 0 |
| Height | 90 mm |
| Width | 20 mm |
| Depth | 83.6 mm |
| Weight | 70 g |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of output voltage (EF008222) | DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Flat plug-in connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Redundancy (EF003156) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Number of digital outputs (EF001993) | 32 |
| Output current (EF003202) | 0.5 A |
| Width (EF000008) | 20 mm |
| Number of digital inputs (EF001992) | 0 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 83.6 mm |
| Permitted voltage at output (EF007553) | 10.2 V |
| Supply voltage DC (EF007534) | 12 V |
