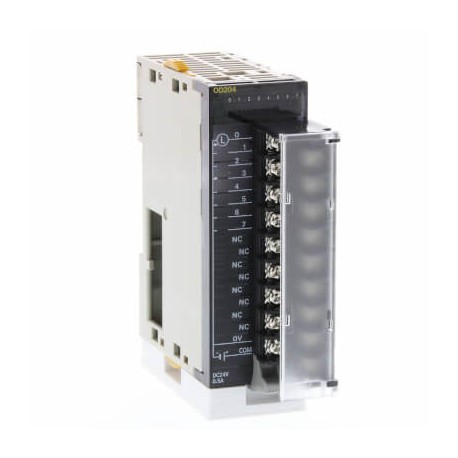

OMRON CJ1W-OD204 CJ1W-OD204 CJ1W0309D CJ1WOD204,1 OMRON Module 8 PNP Outputs 0.5 A Term. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-OD204 CJ1W0309D CJ1WOD204,1 OMRON Module 8 PNP Outputs 0.5 A Term.

CJ1W-OD204

CJ1W0309D

CJ1WOD204.1

OMRON

1 Pcs.

Module 8 PNP Outputs 0.5 A Term. Digital output unit, 8 x transistor outputs, PNP, 0.5 A, 24 VDC, with short-circuit protection and alarm, screw terminal

Automation > PLC digital I/O-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CJ1W-OD204 is a transistor output module utilized in industrial control setups to govern DC loads directly from a processor. Output modules convert internal controller commands into switching actions for high-speed device actuation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of voltage (input voltage) (EF003033): DC
  • Type of output voltage (EF008222): DC
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): DC
  • Digital inputs configurable (EF008516): No
  • Digital outputs configurable (EF008520): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Redundancy (EF003156): No
  • Suitable for safety functions (EF001597): No
  • Short-circuit protection, outputs available (EF003203): Yes
  • Number of digital outputs (EF001993): 8
  • Output current (EF003202): 0.5 A
  • Width (EF000008): 31 mm

More info

▲
I/O systemCJ I/O BusExpansion unit typeBasic I/O UnitType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay1-8 msNumber of digital outputs8Digital output typePNPPermitted voltage at output20.4-26.4 VOutput current0.5 AShort-circuit protected outputsI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsNumber of IOV (V+) terminals1Number of IOG (V-) terminals1Number of COM terminals0Product Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)120 g
