> OMRON > Control Systems > CJ1 > CJ1W0109A

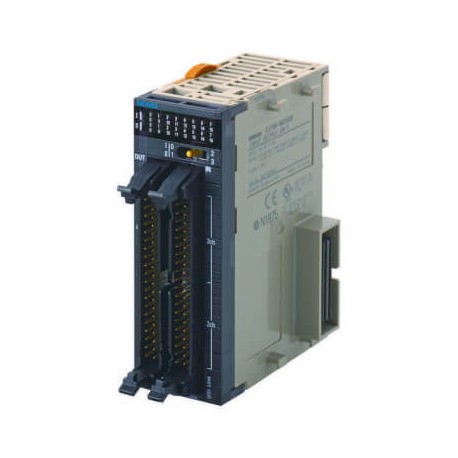

OMRON CJ1W-MD263 CJ1W-MD263 CJ1W0109A CJ1WMD263 OMRON Module 32/32 I/O NPN THOUSAND View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-MD263 CJ1W0109A CJ1WMD263 OMRON Module 32/32 I/O NPN THOUSAND

CJ1W-MD263

CJ1W0109A

CJ1WMD263

OMRON

1 Pcs.

Module 32/32 I/O NPN THOUSAND Digital I/O unit, 32 x 24 VDC inputs, 32 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, 3.2 A max, 2 x MIL40 connectors (not included)

Automation > PLC digital I/O-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
I/O systemCJ I/O BusExpansion unit typeBasic I/O UnitType of moduleDigital I/ONumber of digital inputs32Digital input typePNP/NPNPermitted voltage at input20.4-26.4 VOFF/ON delay0-32 msNumber of digital outputs32Digital output typeNPNPermitted voltage at output10.2-26.4 VOutput current0.3 AShort-circuit protected outputsI/O connection typeMIL (plug not included)Number of I/O connectors2Detachable I/O connectorSuitable for safety functionsNumber of IOV (V+) terminals4Number of IOG (V-) terminals4Number of COM terminals4Product Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)83.6 mmProduct Weight (unpacked)110 g
ETIM for 156856 PLC's (EC001419)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Type of voltage (input voltage) (EF003033) DC
Type of output voltage (EF008222) DC
Performance level according to EN ISO 13849-1 (EF007399) Level a
Type of digital output (EF003601) Transistor
Type of electric connection (EF003961) Flat plug-in connection
SIL according to IEC 61508 (EF009889) None
Voltage type (supply voltage) (EF002991) DC
Explosion safety category for gas (EF003997) None
Digital inputs configurable (EF008516) Yes
Digital outputs configurable (EF008520) Yes
Appendant operation agent (Ex ib) (EF004142) No
Appendant operation agent (Ex ia) (EF004141) No
Redundancy (EF003156) No
Suitable for safety functions (EF001597) No
Short-circuit protection, outputs available (EF003203) No
Input current at signal 1 (EF001428) 4.1 mA
Number of digital outputs (EF001993) 32
Output current (EF003202) 0.3 A
Width (EF000008) 31 mm
Number of digital inputs (EF001992) 32
Height (EF000040) 90 mm
Depth (EF000049) 83.6 mm
Permitted voltage at input (EF007554) 20.4 V
Time delay at signal change (EF002382) 0 ms
Permitted voltage at output (EF007553) 10.2 V
Supply voltage DC (EF007534) 12 V
