View larger
Images are for illustrative purposes only. Please refer to data sheet for details

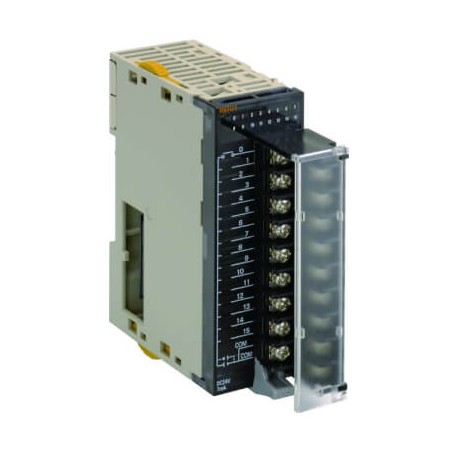

CJ1W-INT01 CJ1W0302G CJ1WINT01,1 OMRON Module 16 Inputs Interrupt-Term.
CJ1W-INT01
CJ1W0302G
CJ1WINT01.1
OMRON
1 Pcs.
Module 16 Inputs Interrupt-Term.
Digital interrupt input unit, 16 x 24 VDC inputs, 2 max per CPU, screw terminal
Automation > PLC digital I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
I/O systemCJ I/O BusExpansion unit typeBasic I/O UnitType of moduleDigital I/ONumber of digital inputs16Digital input typeInterrupt, PNP/NPNPermitted voltage at input20.4-26.4 VNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals2Product Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)60 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | None |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Digital inputs configurable (EF008516) | Yes |
| Digital outputs configurable (EF008520) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Redundancy (EF003156) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Input current at signal 1 (EF001428) | 7 mA |
| Number of digital outputs (EF001993) | 0 |
| Output current (EF003202) | 0 A |
| Width (EF000008) | 31 mm |
| Number of digital inputs (EF001992) | 16 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
| Permitted voltage at input (EF007554) | 20.4 V |
| Supply voltage DC (EF007534) | 24 V |
