View larger
Images are for illustrative purposes only. Please refer to data sheet for details

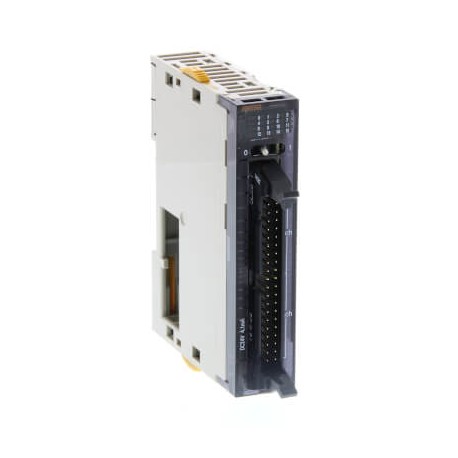

CJ1W-ID232 CJ1W3010E CJ1WID232CHN OMRON Module 32 Inputs 24vdc THOUSAND
CJ1W-ID232
CJ1W3010E
CJ1WID232CHN
OMRON
2 Pcs.
Module 32 Inputs 24vdc THOUSAND
Digital input unit, 32 x 24 VDC inputs, MIL40 connector (not included)
Automation > PLC digital I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
I/O systemCJ I/O BusExpansion unit typeBasic I/O UnitType of moduleDigital I/ONumber of digital inputs32Digital input typePNP/NPNPermitted voltage at input20.4-26.4 VOFF/ON delay0-32 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsI/O connection typeMIL (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals4Product Height (unpacked)90 mmProduct Width (unpacked)20 mmProduct Depth (unpacked)83.6 mmProduct Weight (unpacked)62 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | None |
| Type of electric connection (EF003961) | Flat plug-in connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Digital inputs configurable (EF008516) | Yes |
| Digital outputs configurable (EF008520) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Redundancy (EF003156) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Input current at signal 1 (EF001428) | 4.1 mA |
| Number of digital outputs (EF001993) | 0 |
| Output current (EF003202) | 0 A |
| Width (EF000008) | 20 mm |
| Number of digital inputs (EF001992) | 32 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 83.6 mm |
| Permitted voltage at input (EF007554) | 20.4 V |
| Time delay at signal change (EF002382) | 0 ms |
| Supply voltage DC (EF007534) | 24 V |
