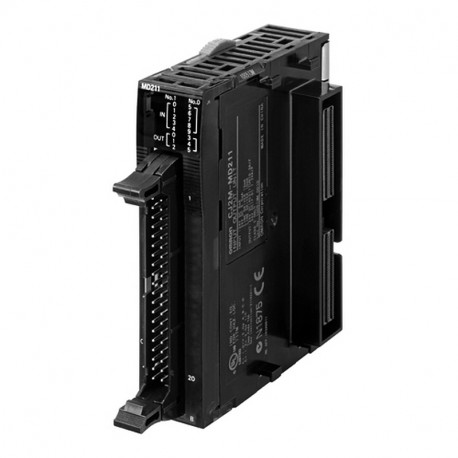

OMRON CJ2M-MD211 CJ2M-MD211 CJ2W0028E CJ2MMD211 OMRON I/O module Pulse NPN for CJ2M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2M-MD211 CJ2W0028E CJ2MMD211 OMRON I/O module Pulse NPN for CJ2M

CJ2M-MD211

CJ2W0028E

CJ2MMD211

OMRON

1 Pcs.

I/O module Pulse NPN for CJ2M Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM ou

Automation > PLC function/technology module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An I/O module handling pulse signals with NPN transistor configuration provides the necessary digital interface for connecting pulse-generating sensors and actuators to programmable automation controllers. The Omron CJ2M-MD211 ensures reliable signal transmission and high-speed data exchange within modular rack architectures. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1: Level a
  • Suitable for counting: No
  • Suitable for welding control: No
  • Suitable for multi-axis positioning: No
  • Suitable for flux measurement: No
  • Suitable for weighing: No
  • Appendant operation agent (Ex ib): No
  • Suitable for incremental data detection: No
  • Suitable for cam controller: No
  • Suitable for SSI: No
  • Suitable for CNC: No
  • Appendant operation agent (Ex ia): No
  • Suitable for NC: No
  • Suitable for detection absolute value: No
  • Suitable for flying saw: No
  • Redundancy: No

More info

▲
I/O systemCJ CPU BusExpansion unit typeCPU Pulse I/O UnitType of modulePositioningDigital input typeIncremental encoder, Interrupt, NPN, Voltage pulseDigital output typeNPN, PWM, Voltage pulseNumber of encoder input channels2Number of pulse output channels6Max. pulse output frequency2 kHzI/O connection typeMIL (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsCommunication port(s)NoneNumber of IOV (V+) terminals12Number of IOG (V-) terminals12Product Height (unpacked)90 mmProduct Width (unpacked)20 mmProduct Depth (unpacked)66.3 mmProduct Weight (unpacked)70 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
