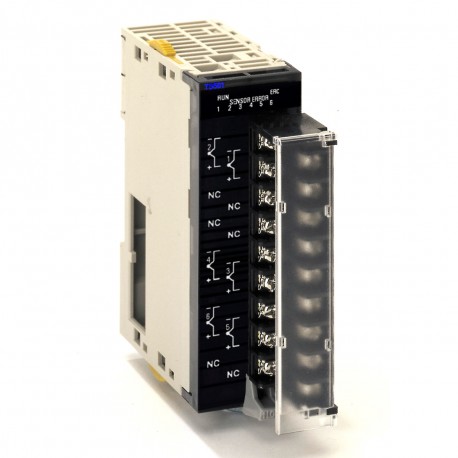

OMRON CJ1W-TS561 CJ1W-TS561 CJ1W9021C CJ1WTS561 OMRON Module 6 Inputs Thermocouple View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-TS561 CJ1W9021C CJ1WTS561 OMRON Module 6 Inputs Thermocouple

CJ1W-TS561

CJ1W9021C

CJ1WTS561

OMRON

1 Pcs.

Module 6 Inputs Thermocouple Thermocouple input unit, 6 x inputs type J, K, resolution 0.1 °C, screw terminal

Automation > PLC analogue I/O-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CJ1W-TS561 thermocouple input module processes thermal signals from industrial temperature probes to deliver accurate data to the control system. Temperature processing modules of this type are essential for monitoring high-heat industrial environments in manufacturing applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of electric connection (EF003961): Screw connection
  • Output, current (EF003212): No
  • Input, resistor (EF003206): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): Yes
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Analogue outputs configurable (EF008519): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Input, resistance thermometer (EF003207): No
  • Suitable for safety functions (EF001597): No
  • Input signal, configurable (EF003209): Yes
  • Output signal configurable (EF003214): No
  • Output, voltage (EF003213): No

More info

▲
I/O systemCJ I/O BusExpansion unit typeBasic I/O UnitType of moduleAnalog I/ONumber of analog inputs6Temperature input typeJ, KLinear analog input typeNoneResolution of the analog inputs15 BitNumber of analog outputs0Linear analog output typeNoneI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsProduct Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)176 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
