View larger
Images are for illustrative purposes only. Please refer to data sheet for details

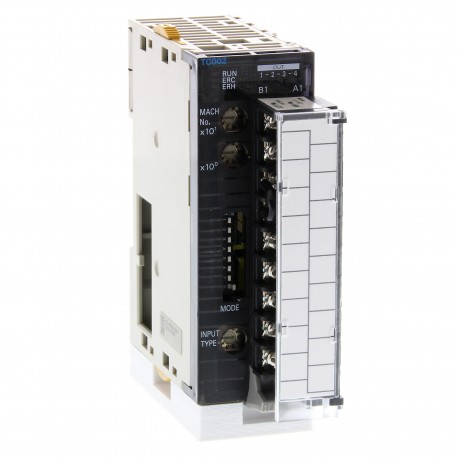

CJ1W-TC002 CJ1W0032M 142660 OMRON Temperature Control Module 4 Loops Thermocouple PNP
CJ1W-TC002
CJ1W0032M
CJ1WTC002
OMRON
1 Pcs.
Module Temperature Control 4 loops Thermocouple input, PNP
Temperature control unit, R/S/K/J/T/L/B thermocouple inputs, transistor (PNP) output, 4 loops
Automation > PLC analogue/digital I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
I/O systemCJ I/O BusExpansion unit typeSpecial I/O UnitType of moduleTemperature controlNumber of digital inputs0Digital input typeNoneNumber of digital outputs4Digital output typePNP, Voltage pulseNumber of analog inputs4Temperature input typeB, J, K, L, R, S, TLinear analog input typeNoneNumber of analog outputs0Linear analog output typeNoneControl functionHeat or coolHeater burnout detectionI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsProduct Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)200 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of output voltage (EF008222) | DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Analogue input, thermocouple (EF003225) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Analogue input, voltage (EF003221) | No |
| Analogue output, voltage (EF003235) | No |
| Analogue input, current (EF003219) | No |
| Analogue input, resistor (EF003222) | No |
| Analogue output signal configurable (EF003236) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Analogue input signal configurable (EF003227) | Yes |
| Suitable for safety functions (EF001597) | No |
| Analogue output, current (EF003234) | No |
| Short-circuit protection, digital outputs available (EF003320) | No |
| Analogue input, resistor temperature (EF003224) | No |
| Number of analogue inputs (EF001994) | 4 |
| Number of digital outputs (EF001993) | 4 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 31 mm |
| Number of digital inputs (EF001992) | 0 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
| Output current at digital output (EF003218) | 0.1 A |
| Output voltage at digital output (EF003215) | 20.4 V |
