View larger
Images are for illustrative purposes only. Please refer to data sheet for details

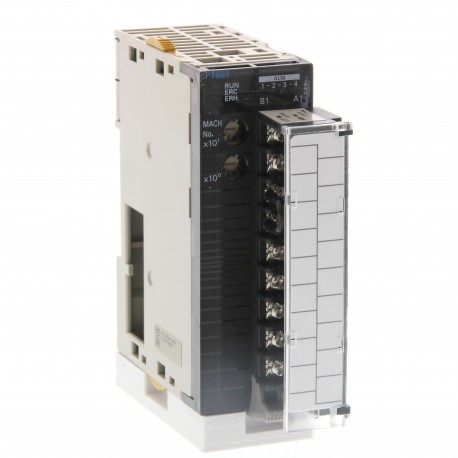

CJ1W-PTS51 CJ1W0138E CJ1WPTS51 OMRON Module, 4 Inputs Thermocouple Isolated
CJ1W-PTS51
CJ1W0138E
CJ1WPTS51
OMRON
1 Pcs.
Module, 4 Inputs Thermocouple Isolated
Isolated thermocouple input unit, 4 x inputs type K, J, L, R, S, T, B, resolution 0.1 °C, screw terminal
Automation > PLC analogue I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | Special I/O Unit |
| Type of module | Analog I/O |
| Number of analog inputs | 4 |
| Temperature input type | B, J, K, L, R, S, T |
| Linear analog input type | None |
| Resolution of the analog inputs | 13 Bit |
| Input circuit type | Isolated |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 89 mm |
| Weight | 150 g |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Output, current (EF003212) | No |
| Input, resistor (EF003206) | No |
| Input, voltage (EF003205) | No |
| Input, thermocouple (EF003208) | Yes |
| Analogue inputs configurable (EF008518) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Input, current (EF003204) | No |
| Analogue outputs configurable (EF008519) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Input, resistance thermometer (EF003207) | No |
| Suitable for safety functions (EF001597) | No |
| Input signal, configurable (EF003209) | Yes |
| Output signal configurable (EF003214) | No |
| Output, voltage (EF003213) | No |
| Number of analogue inputs (EF001994) | 4 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 31 mm |
| Resolution of the analogue inputs (EF003575) | 13 Bit |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
