View larger
Images are for illustrative purposes only. Please refer to data sheet for details

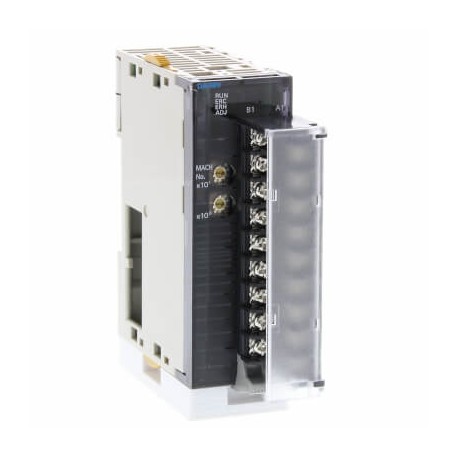

CJ1W-DA08V CJ1W9024H 171896 OMRON Module 8 Analog Outputs Voltage 1/8000
CJ1W-DA08V
CJ1W9024H
CJ1WDA08VOT
OMRON
1 Pcs.
Module 8 Analog Outputs Voltage 1/8000
Analog output unit, 8 x output 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, resolution 1:4000 scalable to ±32000 or 1:8000, screw terminal
Automation > PLC analogue I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | Special I/O Unit |
| Type of module | Analog I/O |
| Number of analog inputs | 0 |
| Temperature input type | None |
| Linear analog input type | None |
| Number of analog outputs | 8 |
| Linear analog output type | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V |
| Resolution of the analog outputs | 12 Bit |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 89 mm |
| Weight | 140 g |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Output, current (EF003212) | No |
| Input, resistor (EF003206) | No |
| Input, voltage (EF003205) | No |
| Input, thermocouple (EF003208) | No |
| Analogue inputs configurable (EF008518) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Input, current (EF003204) | No |
| Analogue outputs configurable (EF008519) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Input, resistance thermometer (EF003207) | No |
| Suitable for safety functions (EF001597) | No |
| Input signal, configurable (EF003209) | No |
| Output signal configurable (EF003214) | Yes |
| Output, voltage (EF003213) | Yes |
| Number of analogue inputs (EF001994) | 0 |
| Resolution of the analogue outputs (EF003577) | 12 Bit |
| Number of analogue outputs (EF001995) | 8 |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
