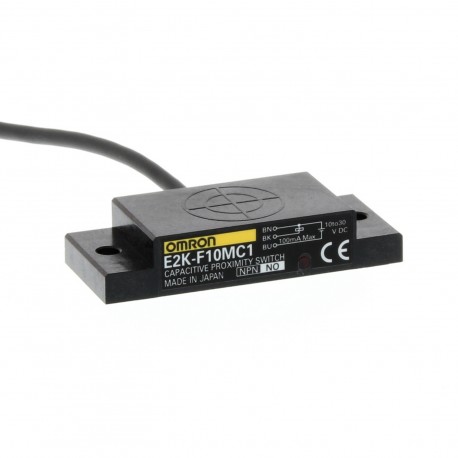

OMRON E2K-F10MC1 2M E2K-F10MC1 2M E2KF1001A E2KF10MC1 OMRON Capacitive Level cc 3h 10mm NPN NA Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2K-F10MC1 2M E2KF1001A E2KF10MC1 OMRON Capacitive Level cc 3h 10mm NPN NA Cable 2m

E2K-F10MC1 2M

E2KF1001A

E2KF10MC1

OMRON

1 Pcs.

Capacitive Level cc 3h 10mm NPN NA Cable 2m Proximity sensor, capacitive, flat, unshielded, 10mm, DC, 3-wire, NPN-NO, 2m cable

Automation > Capacitive proximity switch
E2K

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron proximity switch, capacitive (E2K-F10MC1 2M) is deployed in industrial environments for non-contact object detection and continuous fluid level monitoring. Engineers frequently integrate these sensing units into automated assembly stations and container filling systems to track target materials accurately.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 34 mm
  • Switching distance (EF003647): 10 mm
  • Length of sensor (EF007334): 20 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
