8 outputs PNP Mounting panel Rotary positioner, DIN 96x96 mm panel mounting, 24 VDC, 8x PNP outputs (requires E6CP/E6F encoder)

Automation > Multifunction measuring instrument
H8PS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

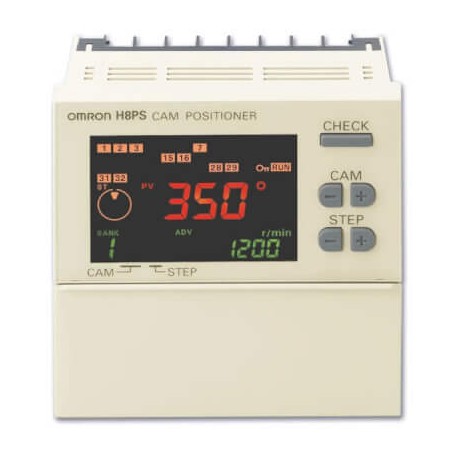

Omron H8PS-8BP digital cam positioner offers multi-output transistor switching configured for high-speed industrial automation machinery and production presses. This panel-mounted controller replaces traditional mechanical cams with programmable electronic timing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Cam positioner
  • Size: 1/4 DIN (96 x 96 mm)
  • LCD backlight: With backlight
  • Installation type: On-panel
  • Output type: PNP
  • Transistor output: 8
  • Inputs: Encoder
  • Supply voltage AC: 20.4-26.4 V
  • Product Width (unpacked): 96 mm
  • Product Height (unpacked): 96 mm
  • Product Depth (unpacked): 67.5 mm
  • Mounting method (EF000003): Front mounting
  • Model (EF000010): Measurement transformer
  • Degree of protection (IP), front side (EF003118): IP40
  • Voltage type (supply voltage) (EF002991): DC
  • Pulse output (EF008838): Electrical

More info

▲

Specifications

TypeCam positioner
Size1/4 DIN (96 x 96 mm)
LCD backlightWith backlight
Installation typeOn-panel
Output typePNP
Transistor output8
InputsEncoder
Supply voltage AC20.4-26.4 V
Product Width (unpacked)96 mm
Product Height (unpacked)96 mm
Product Depth (unpacked)67.5 mm

Accessories

E6C3-AG5C-C 256P/R 2MEncoder, absolute, 256ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable
E6C3-AG5C-C 360P/R 2MEncoder, absolute, 360ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable
E6C3-AG5C-C 720P/R 2MEncoder, absolute, 720ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable
E6CP-AG5C-C 256 2MEncoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
E6CP-AG5C-C 256 5MEncoder, absolute, 256 ppr, 8-bit, 12 to 24 VDC gray code output, 5 m cable, H8PS connector
E6F-AG5C-C 256 2MEncoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
E6F-AG5C-C 360 2MEncoder, absolute, 360ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
Y92A-96NWatertight cover for DIN 96x96 mm device, IP66, plastic
Y92S-41-200Output cable, free wire ends, 2m long (1pc required for 16 output, 2pcs required for 32 output)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
