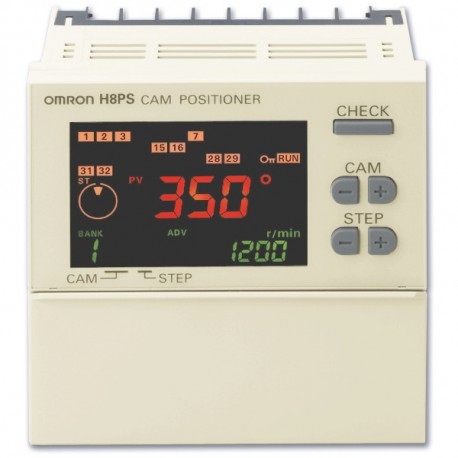

32 Outputs PNP Mounting Surface/Rail Rotary positioner, 1/4DIN (96 x 96mm), track/surface mounting, 24 VDC, 32x PNP outputs (requires E6CP/E6F encoder)

Automation > Multifunction measuring instrument
H8PS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron H8PS-32BFP is a cam positioner equipped with 32 transistor outputs and encoder inputs, designed for surface or rail mounting in automated assembly lines. Electronic cam positioners replace mechanical limit switches in packaging and pressing machinery to provide precise high-speed timing and sequential control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Cam positioner
  • Size: 1/4 DIN (96 x 96 mm)
  • LCD backlight: With backlight
  • Installation type: DIN Rail, On-panel
  • Output type: PNP
  • Transistor output: 32
  • Inputs: Encoder
  • Supply voltage AC: 20.4-26.4 V
  • Width: 96 mm
  • Height: 121.2 mm
  • Depth: 58 mm
  • Mounting method (EF000003): DIN rail
  • Model (EF000010): Measurement transformer
  • Voltage type (supply voltage) (EF002991): DC
  • Degree of protection (IP), front side (EF003118): IP40
  • Pulse output (EF008838): Electrical

More info

▲

Specifications

TypeCam positioner
Size1/4 DIN (96 x 96 mm)
LCD backlightWith backlight
Installation typeDIN Rail, On-panel
Output typePNP
Transistor output32
InputsEncoder
Supply voltage AC20.4-26.4 V
Width96 mm
Height121.2 mm
Depth58 mm

Accessories

E5ZE-CBL200Output cable, connectors to fit to XW2D-20G6, 2m long (1pc required for 16 output, 2pcs required for 32 output)
E6C3-AG5C-C 256P/R 2MEncoder, absolute, 256ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable
E6C3-AG5C-C 360P/R 2MEncoder, absolute, 360ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable
E6C3-AG5C-C 720P/R 2MEncoder, absolute, 720ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable
E6CP-AG5C-C 256 2MEncoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
E6CP-AG5C-C 256 5MEncoder, absolute, 256 ppr, 8-bit, 12 to 24 VDC gray code output, 5 m cable, H8PS connector
E6F-AG5C-C 256 2MEncoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
E6F-AG5C-C 360 2MEncoder, absolute, 360ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
E6F-AG5C-C 720 2MEncoder, absolute, 720ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
Y92A-96BProtective cover for DIN96x96mm device, hard plastic
Y92A-96NWatertight cover for DIN 96x96 mm device, IP66, plastic
Y92F-91DIN rail mounting base for H8PS rotary positioner
Y92S-41-200Output cable, free wire ends, 2m long (1pc required for 16 output, 2pcs required for 32 output)
