View larger
Images are for illustrative purposes only. Please refer to data sheet for details

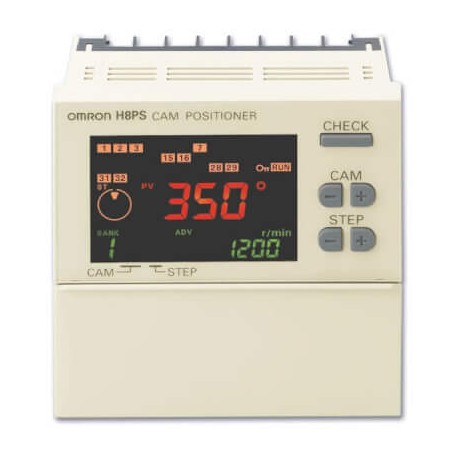

H8PS-16BFP H8PS1018G H8PS16BFP OMRON 16 Outputs PNP Mounting Surface/DIN-Rail
H8PS-16BFP
H8PS1018G
H8PS16BFP
OMRON
1 Pcs.
16 Outputs PNP Mounting Surface/DIN-Rail
Rotary positioner, 1/4DIN (96 x 96mm), track/surface mounting, 24 VDC, 16x PNP outputs (requires E6CP/E6F encoder)
Automation > Multifunction measuring instrument
H8PS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Type | Cam positioner |
| Size | 1/4 DIN (96 x 96 mm) |
| LCD backlight | With backlight |
| Installation type | DIN rail, On-panel |
| Output type | PNP |
| Transistor output | 16 |
| Inputs | Encoder |
| Supply voltage AC | 20.4-26.4 V |
| Product Width (unpacked) | 96 mm |
| Product Height (unpacked) | 121.2 mm |
| Product Depth (unpacked) | 58 mm |
Accessories
| E5ZE-CBL200 | Output cable, connectors to fit to XW2D-20G6, 2m long (1pc required for 16 output, 2pcs required for 32 output) | ||
| E6C3-AG5C-C 256P/R 2M | Encoder, absolute, 256ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable | ||
| E6C3-AG5C-C 360P/R 2M | Encoder, absolute, 360ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable | ||
| E6C3-AG5C-C 720P/R 2M | Encoder, absolute, 720ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable | ||
| E6CP-AG5C-C 256 2M | Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector | ||
| E6CP-AG5C-C 256 5M | Encoder, absolute, 256 ppr, 8-bit, 12 to 24 VDC gray code output, 5 m cable, H8PS connector | ||
| E6F-AG5C-C 256 2M | Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector | ||
| E6F-AG5C-C 360 2M | Encoder, absolute, 360ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector | ||
| Y92A-96N | Watertight cover for DIN 96x96 mm device, IP66, plastic | ||
| Y92F-91 | DIN rail mounting base for H8PS rotary positioner | ||
| Y92S-41-200 | Output cable, free wire ends, 2m long (1pc required for 16 output, 2pcs required for 32 output) |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail |
| Model (EF000010) | Measurement transformer |
| Voltage type (supply voltage) (EF002991) | DC |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | Other |
| Accuracy class reactive energy according to IEC 62053-23 (EF015239) | Other |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Pulse output (EF008838) | Electrical |
| Display (EF000360) | LCD |
| With communication interface RS-485 (EF007314) | No |
| Pulse counter (EF006559) | No |
| Effective power measurement device (EF006561) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Harmonics measurement (EF001835) | No |
| Power factor (EF001927) | No |
| With rotational speed meter (EF006557) | Yes |
| Apparent power (EF001929) | No |
| Step angle (cos phi) (EF001930) | No |
| Suitable for RJ plug (EF008697) | No |
| With communication interface KNX (EF015735) | No |
| Wth communication interface M-Bus (EF016136) | No |
| Measurement type load profile (EF008844) | No |
| With firmware signature (EF015392) | No |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| With Role Based Access Control (RBAC) (EF015394) | No |
| With logging of security events (security event log) (EF015393) | No |
| Frequency meter (EF006558) | No |
| Measured value memory (EF000307) | Yes |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Remote display (EF016138) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Calibrated (EF008836) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Ampere meter (EF006555) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Reactive power meter (EF006556) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| Voltmeter (EF006560) | No |
| Number of Ethernet connections (EF004661) | 0 |
| Width (EF000008) | 96 mm |
| Number of digital inputs (EF001992) | 1 |
| Depth (EF000049) | 60.6 mm |
| Number of analogue inputs (EF001994) | 0 |
| Number of voltage measurement inputs (EF015385) | 0 |
| Number of digital outputs (EF001993) | 16 |
| Number of current measurement inputs (EF015388) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Height (EF000040) | 121.2 mm |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Supply voltage DC (EF007534) | 20.4 V |
