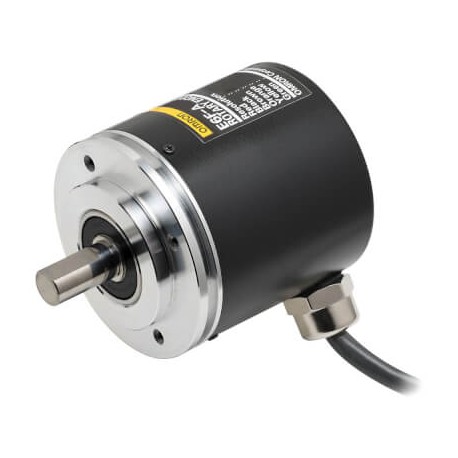

OMRON E6F-AG5C-C 720 2M E6F-AG5C-C 720 2M E6F 1037B E6FAG5CC7202M OMRON All 720cpr Gray NPN 12-24vdc Connector 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6F-AG5C-C 720 2M E6F 1037B E6FAG5CC7202M OMRON All 720cpr Gray NPN 12-24vdc Connector 2m

E6F-AG5C-C 720 2M

E6F 1037B

E6FAG5CC7202M

OMRON

1 Pcs.

All 720cpr Gray NPN 12-24vdc Connector 2m Encoder, absolute, 720ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector

Automation > Rotary encoder
E6F

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6F-AG5C-C 720 2M absolute encoder is an electromechanical sensor used to track rotational position, speed, and direction by generating distinct digital feedback signals. This type of device is widely utilized in industrial machinery, conveyor systems, and motor feedback loops where precise angular location must be maintained even after power interruptions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Absolute encoder
  • Signal outputs of rotary encoder (EF003590): A+B
  • Type of electric connection (EF003961): Cable with connector
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 720
  • Construction size (EF012282): 60 mm
  • Diameter axle (EF007110): 9 mm
  • Impulse rate per cycle (EF007289): 20000
  • Number of steps per revolution (EF006938): 720
  • Number of revolutions (EF006943): 5000

More info

▲
ModelAbsolute encoderConstruction size60 mmResolution per rotation720Output codeGrayShaft diameter10 mmPower supply voltage12-24 VOutput typeNPNConnection methodSystem connectorCable length2 m
