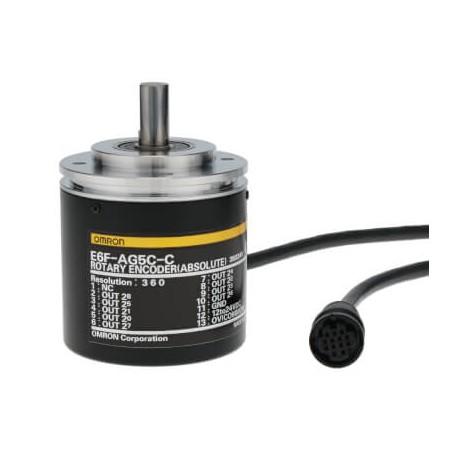

OMRON E6F-AG5C-C 360 2M E6F-AG5C-C 360 2M E6F 1036D E6FAG5CC3602M OMRON All 360cpr Gray NPN 12-24vdc Connector 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6F-AG5C-C 360 2M E6F 1036D E6FAG5CC3602M OMRON All 360cpr Gray NPN 12-24vdc Connector 2m

E6F-AG5C-C 360 2M

E6F 1036D

E6FAG5CC3602M

OMRON

1 Pcs.

All 360cpr Gray NPN 12-24vdc Connector 2m Encoder, absolute, 360ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector

Automation > Rotary encoder
E6F

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6F-AG5C-C 360 2M is an absolute encoder engineered to deliver distinct angular position values for complex industrial automation and positioning tasks. Rotary encoders of this type are widely deployed in heavy machinery, robotics, and automated storage systems to track absolute mechanical orientation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Absolute encoder
  • Signal outputs of rotary encoder (EF003590): A+B
  • Type of electric connection (EF003961): Cable with connector
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 360
  • Construction size (EF012282): 60 mm
  • Diameter axle (EF007110): 9 mm
  • Impulse rate per cycle (EF007289): 20000
  • Number of steps per revolution (EF006938): 360
  • Number of revolutions (EF006943): 5000

More info

▲
ModelAbsolute encoderConstruction size60 mmResolution per rotation360Output codeGrayShaft diameter10 mmPower supply voltage12-24 VOutput typeNPNConnection methodSystem connectorCable length2 m
