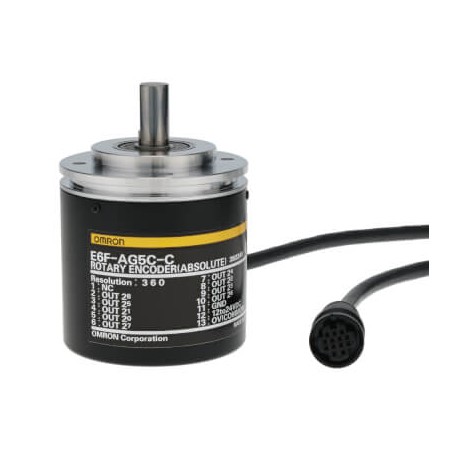

OMRON E6F-AG5C-C 256 2M E6F-AG5C-C 256 2M E6F 1010M E6FAG5CC256 OMRON All 256cpr Gray NPN 12-24vdc Connector 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6F-AG5C-C 256 2M E6F 1010M E6FAG5CC256 OMRON All 256cpr Gray NPN 12-24vdc Connector 2m

E6F-AG5C-C 256 2M

E6F 1010M

E6FAG5CC256

OMRON

1 Pcs.

All 256cpr Gray NPN 12-24vdc Connector 2m Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector

Automation > Rotary encoder
E6F

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for robust environments, the Omron E6F-AG5C-C 256 2M is an absolute encoder that provides unique digital code outputs corresponding to distinct shaft positions. Absolute encoders are essential in applications requiring non-volatile position tracking without the need for homing routines after startup. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Absolute encoder
  • Signal outputs of rotary encoder (EF003590): A+B
  • Type of electric connection (EF003961): Cable with connector
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 256
  • Construction size (EF012282): 60 mm
  • Diameter axle (EF007110): 9 mm
  • Impulse rate per cycle (EF007289): 20000
  • Number of steps per revolution (EF006938): 256
  • Number of revolutions (EF006943): 5000

More info

▲
ModelAbsolute encoderConstruction size60 mmResolution per rotation256Output codeGrayShaft diameter10 mmPower supply voltage12-24 VOutput typeNPNConnection methodSystem connectorCable length2 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
