View larger
Images are for illustrative purposes only. Please refer to data sheet for details

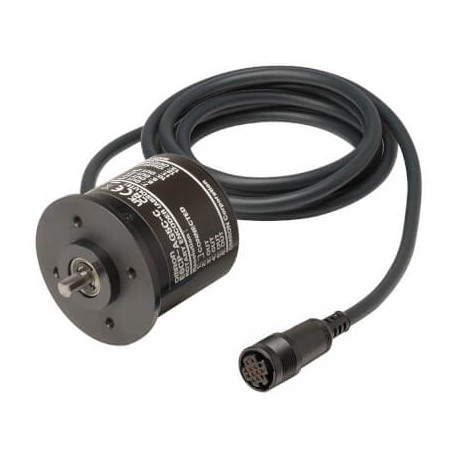

E6CP-AG5C 256 2M E6CP1009H E6CPAG5C2562M OMRON All 256cpr Gray NPN 12-24vdc-Cable 2m
E6CP-AG5C 256 2M
E6CP1009H
E6CPAG5C2562M
OMRON
1 Pcs.
All 256cpr Gray NPN 12-24vdc-Cable 2m
Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2 m cable
Automation > Rotary encoder
E6CP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ModelAbsolute encoderConstruction size50 mmResolution per rotation256Output codeGrayShaft diameter6 mmPower supply voltage12-24 VOutput typeNPNConnection methodCableCable length2 m
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Physical measurement principle (EF008238) | Optic |
| Degree of protection (IP) (EF005474) | IP50 |
| Standard for interfaces (EF004017) | Other |
| Model (EF000010) | Absolute encoder |
| Signal outputs of rotary encoder (EF003590) | Other |
| Type of transmission medium (EF007513) | Other |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Plastic |
| Explosion safety category for gas (EF003997) | None |
| Type of shaft encoder (EF006968) | Full shaft |
| Programmable (EF000841) | No |
| Max. pulses per revolution (EF003589) | 256 |
| Construction size (EF012282) | 50 mm |
| Diameter axle (EF007110) | 5.98 mm |
| Impulse rate per cycle (EF007289) | 5000 |
| Number of steps per revolution (EF006938) | 256 |
| Number of revolutions (EF006943) | 1000 |
