> OMRON > Encoders > Accessories > E69 1016M

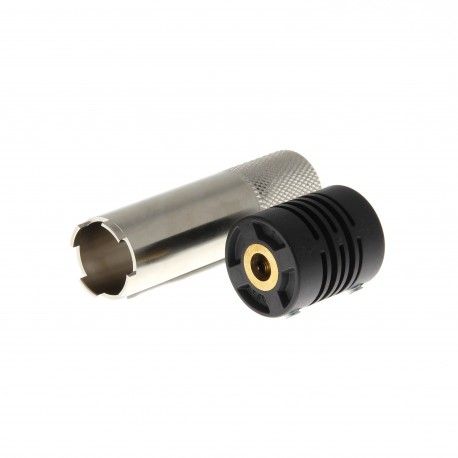

OMRON E69-C610B E69-C610B E69 1016M E69C610B OMRON Coupling encoder D6-D10mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E69-C610B E69 1016M E69C610B OMRON Coupling encoder D6-D10mm

E69-C610B

E69 1016M

E69C610B

OMRON

1 Pcs.

Coupling encoder D6-D10mm Shaft coupling for E6F-C encoder, Different end diameter

Automation > Accessories/spare parts for sensor technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E69-C610B coupling encoder D6-D10mm mechanically links rotating shafts to encoder spindles while compensating for angular and axial misalignment. Flexible couplings are crucial in motion control feedback loops to maintain rotational accuracy. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 5 to 12 VDC: Open-collector output
  • 12 to 24 VDC: E6CP-AG5C 256P/R 2M
  • Supported: E6CP-AG5C-C 256P/R 2M
  • Couplings: Provided with the E6CP-AG3C and E6CP-AG5C.
  • Different end diameter: E69-C68B
  • Different end diameter: E69-C610B
  • Metal construction: E69-C06M
  • Servo Mounting Bracket: Provided with the product. (Three brackets in a set.)
  • Extension Cable: 5 m
  • 10 m: E69-DF10
  • 20 m: E69-DF20
  • Power supply voltage: 5 VDC −5% to 12 VDC +10%, ripple (p-p): 5% max.
  • Current consumption 1: 90 mA max.
  • Resolution (rotations): 256 (8-bit)
  • Output code: Gray code
  • Output configuration: Open-collector output

More info

▲
Features

E6CP-A

Low-cost Encoder with Diameter of 50 mm

  • Absolute model
  • External diameter of 50 mm
  • Resolution: 256 (8-bit)
  • Lightweight construction using plastic body

Ordering information

Encoders

Power supply voltage

Output configuration

Resolution (divisions)

Connector for H8PS Cam Positioner

Order code

5 to 12 VDC

Open-collector output

256 (8-bit)

None

E6CP-AG3C 256P/R 2M

12 to 24 VDC

E6CP-AG5C 256P/R 2M

Supported

E6CP-AG5C-C 256P/R 2M

Note:When connecting to the H8PS, use the E6CP-AG5C-C, which is connected using a connector. It cannot be used on other models.

Accessories (Order Separately)

Name

Remarks

Order code

Couplings

Provided with the E6CP-AG3C and E6CP-AG5C.

E69-C06B

Different end diameter

E69-C68B

Different end diameter

E69-C610B

Metal construction

E69-C06M

Servo Mounting Bracket

Provided with the product. (Three brackets in a set.)

E69-2

Extension Cable

5 m

Models are also available with 15-m and 98-m cables.

E69-DF5

10 m

E69-DF10

20 m

E69-DF20

Specifications

ItemModel

E6CP-AG3C

E6CP-AG5C

E6CP-AG5C-C

Power supply voltage

5 VDC −5% to 12 VDC +10%, ripple (p-p): 5% max.

12 VDC −10% to 24 VDC +15%, ripple (p-p): 5% max.

Current consumption1

90 mA max.

70 mA max.

Resolution (rotations)

256 (8-bit)

Output code

Gray code

Output configuration

Open-collector output

Output capacity

Applied voltage: 28 VDC max.

Sink current: 16 mA max.

Residual voltage: 0.4 V max. (at sink current of 16 mA)

Maximum response frequency2

5 kHz

Logic

Negative logic (high = 0, low = 1)

Accuracy

±1° max.

Direction of rotation

Output code incremented by CW (as viewed from the end of the shaft)

Rise and fall times of
output

1 μs max. (Control output voltage: 16 V, Load resistance: 1 kΩ, Output cable: 2 m max.)

Starting torque

0.98 mN·m max.

Moment of inertia

1 × 10−6 kg·m2 max.

Shaft loading

Radial

29.4 N

Thrust

19.6 N

Maximum permissible speed

1,000 r/min

Ambient temperature range

Operating: −10 to 55°C (with no icing), Storage: −25 to 85°C (with no icing)

Ambient humidity range

Operating/Storage: 35% to 85% (with no condensation)

Insulation resistance

200 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength

500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions

Degree of protection3

IEC 60529 IP50

Connection method

Pre-wired Models (Standard cable length: 2 m)

Connector Models (Standard cable length: 2 m)

Material

Case: ABS, Main unit: PPS, Shaft: SUS416, Mounting Bracket: Galvanized iron

Weight (packed state)

Approx. 200 g

Accessories

Coupling (excluding Connector Models), Servo Mounting Bracket,

Hexagonal wrench (excluding Connector Models), Instruction manual

1.An inrush current of approximately 8 A will flow for approximately 0.3 ms when the power is turned ON.

2.The maximum electrical response speed is determined by the resolution and maximum response frequency as follows:


This means that the Rotary Encoder will not operate electrically if its speed exceeds the maximum electrical response speed.

3.No protection is provided against water or oil.
