> OMRON > Encoders > Accessories > E69 1023C

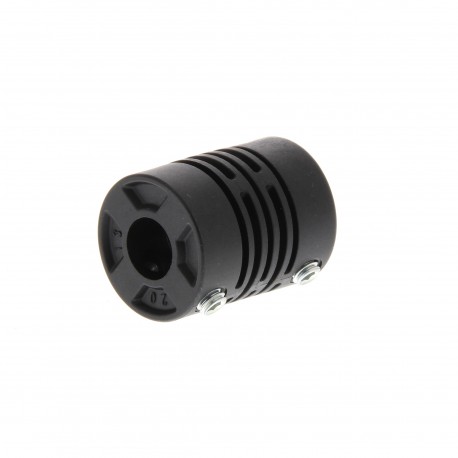

OMRON E69-C08B E69-C08B E69 1023C E69C08B OMRON Coupling encoder D8mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E69-C08B E69 1023C E69C08B OMRON Coupling encoder D8mm

E69-C08B

E69 1023C

E69C08B

OMRON

1 Pcs.

Coupling encoder D8mm Accessory encoder, shaft coupling for E6C3-A encoder

Automation > Accessories/spare parts for sensor technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

E69-C08B is an Omron Coupling encoder D8mm used to mechanically link rotary encoders to drive shafts while accommodating slight misalignments. Flexible couplings protect encoder bearings from radial and axial stress, ensuring accurate rotational feedback in motor control and motion tracking systems. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • 8-outputs: Flush-mounting
  • PNP transistor output: H8PS-8BP
  • Front-mounting/DIN-rail mounting: NPN transistor output
  • PNP transistor output (2): H8PS-8BFP
  • 16-outputs: Flush-mounting
  • PNP transistor output (3): H8PS-16BP
  • Front-mounting/DIN-rail mounting (2): NPN transistor output
  • PNP transistor output (4): H8PS-16BFP
  • 32-outputs: Flush-mounting
  • PNP transistor output (5): H8PS-32BP
  • Front-mounting/DIN-rail mounting (3): NPN transistor output
  • PNP transistor output (6): H8PS-32BFP
  • Economy: 256
  • Standard: 256
  • 2 m: E6C3-AG5C-C 256 2M
  • 360: E6C3-AG5C-C 360 2M

More info

▲
Features

Compact, easy-to-use cam positioner

The H8PS provides high-speed operation at 1,600 r/min and high-precision settings to 0.5° ensuring widespread application. H8PS features a highly visible display with back-lit negative transmissive LCD. Advance angle compensation function compensates for output delays.

  • H 96 to 121.2 x W 96 x D 60.6 to 67.5 mm
  • Front-panel / DIN-rail
  • 24VDC
  • 8-, 16- and 32-outputs
  • NPN/PNP 100mA at 30VDC

Ordering information

Number of outputs

Mounting method

Output configuration

Bank function

Size in mm (H×W×D)

Order code

8-outputs

Flush-mounting

NPN transistor output

No

96×96×67.5

H8PS-8B

PNP transistor output

H8PS-8BP

Front-mounting/DIN-rail mounting

NPN transistor output

96×96×60.6

H8PS-8BF

PNP transistor output

H8PS-8BFP

16-outputs

Flush-mounting

NPN transistor output

Yes

96×96×67.5

H8PS-16B

PNP transistor output

H8PS-16BP

Front-mounting/DIN-rail mounting

NPN transistor output

121.2×96×60.6

H8PS-16BF

PNP transistor output

H8PS-16BFP

32-outputs

Flush-mounting

NPN transistor output

96×96×67.5

H8PS-32B

PNP transistor output

H8PS-32BP

Front-mounting/DIN-rail mounting

NPN transistor output

121.2×96×60.6

H8PS-32BF

PNP transistor output

H8PS-32BFP

Encoders

Type

Resolution

Cable length

Order code

Economy

256

2 m

E6CP-AG5C-C 256 2M

Standard

256

1 m

E6C3-AG5C-C 256 1M

2 m

E6C3-AG5C-C 256 2M

360

E6C3-AG5C-C 360 2M

720

E6C3-AG5C-C 720 2M

Rigid

256

2 m

E6F-AG5C-C 256 2M

360

E6F-AG5C-C 360 2M

720

E6F-AG5C-C 720 2M

Accessories

Name

Specification

Order code

Discrete wire output cable

2 m

Y92S-41-200

Connector-type output cable

2 m

E5ZE-CBL200

USB cable

A miniB, 2 m

Y92S-40

Parallel input adapter

Two units can operate in parallel

Y92C-30

Protective cover

Y92A-96B

Watertight cover

Y92A-96N

DIN-rail mounting base

Y92F-91

Note:CD-ROM support software H8PS-SOFT-V1 available on request. Please contact your Omron representative.

Encoder accessories

Name

Specification

Order code

Shaft coupling for the E6CP

Axis: 6 mm dia.

E69-C06B

Shaft coupling for the E6C3

Axis: 8 mm dia.

E69-C08B

Shaft coupling for the E6F

Axis: 10 mm dia.

E69-C10B

Extension cable

5 m (same for E6CP, E6C3, and E6F)

E69-DF5

Specifications

Rated supply voltage

24 VDC

Inputs

Encoder input

8-output models: None; 16-/32-output models: Bank inputs 1/2/4, origin input, start input

External inputs

Input signals

8-output models: None; 16-/32-output models: Bank inputs 1/2/4, origin input, start input

Input type

No voltage inputs: ON impedance: 1 kΩ max. (leakage current: Approx. 2 mA at 0 Ω)

ON residual voltage: 2 V max., OFF impedance: 100 kΩ min., applied voltage: 30 VDC max.

Minimum input signal width: 20 ms

Number of banks

8 banks (for 16-/32-output models only)

Display method

7-segment, negative transmissive LCD (main display: 11 mm (red), sub-display: 5.5 mm (green))

Memory backup method

EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.

Ambient operating temperature

−10 to 55°C (with no icing or condensation)

Storage temperature

−25 to 65°C (with no icing or condensation)

Ambient humidity

25 to 85%

Degree of protection

Panel surface: IP40, rear case: IP20

Case color

Light grey (Munsell 5Y7/1)
