> OMRON > Control Systems > Accessories > 3GH36121D
OMRON C200H-CN222 C200H-CN222 3GH36121D C200HCN222CHN OMRON Cable console programming 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C200H-CN222 3GH36121D C200HCN222CHN OMRON Cable console programming 2m

C200H-CN222

3GH36121D

C200HCN222CHN

OMRON

1 Pcs.

Cable console programming 2m Programming console cable 2m

Automation > Accessories/spare parts for controls
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

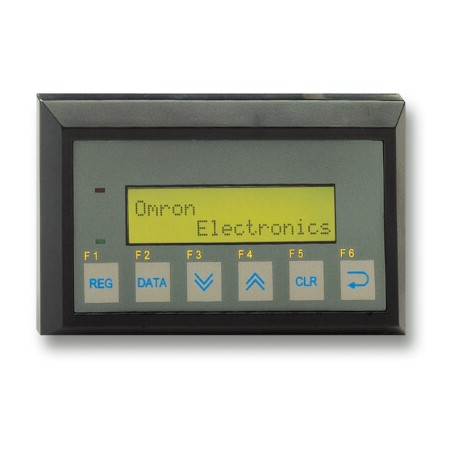

HMI with two text lines, 6-20 F-keys and up to two serial ports

The NT2S is the smallest HMI that we can offer you. It is based on a 16 x 2 lines LCD display with 6 or 20 Function keys. It offers IP65 protection, an optional RTC and printer connection.

  • Easy and free programming software.
  • Small size and installation depth.
  • Real Time Clock (depending on model).
  • Printer connection (depending on model).
  • Cost effective solution.

Ordering information

Type

Order code

STN monochrome

Programmable

6-key type, Black

NT2S-SF121B-EV2

NT2S-SF122B-EV2

PLC controlled

NT2S-SF123B-EV2

Programmable

20-key type, Black

NT2S-SF125B-E

NT2S-SF126B-E

PLC controlled

NT2S-SF127B-E

Accessories

Type

Description

Order code

NT2S-SF121/125 and NT3S

peripheral port CPM series except CPM2C, 2 m

NT2S-CN212-V1

NT2S-SF121/125 and NT3S

peripheral port CPM series except CPM2C, 5 m

NT2S-CN215-V1

NT2S-SF122/SF123/SF126/SF127

peripheral port CPM series except CPM2C, 2 m

NT2S-CN222-V1

NT2S-SF122/SF123/SF126/SF127

peripheral port CPM series except CPM2C, 5 m

NT2S-CN225-V2

NT2S-SF121/125 and NT3S

mini-peripheral port CJ1/CS1 and CPM2C series, 2 m

NT2S-CN223-V2

NT2S-SF122/SF123/SF126/SF127

mini-peripheral port CJ1/CS1 and CPM2C series, 2 m

NT2S-CN224-V1

NT2S-SF121/125 and NT3S

serial port CJ1/CS1/CP1/CPM2/CQM1(H), 2 m

NT2S-CN232-V1

NT2S-SF121/125 and NT3S

serial port CJ1/CS1/CP1/CPM2/CQM1(H), 5 m

NT2S-CN235-V1

NT2S-SF122/SF126

serial port CJ1/CS1/CP1/CPM2/CQM1(H), 2 m

NT2S-CN242-V1

All NT2S and NT3S models

serial programming cable, 2 m

NT2S-CN002

Software

Type

Order code

This software is provided free of charge and features Windows fonts, a Multi language import/export utility, a character map to design your own characters
and can be used to place bitmaps in your application.

NTXS

Specifications

Size in mm (H×W×D)

60×109×43 (6 F-keys), 107×107×43 (20 F-keys)

Effective display area

56×11 mm

Line voltage

24 VDC ±10%

Touch panel

-

Obtained standards

CE, cULus

No. of display characters (standard characters)

16 characters x 2 lines

No. of registered screens

65,000 max.

Screen data capacity (standard)

24 KB in Programmable models

Expansion memory

-

Memory card interface

-

Internal memory

1K words data, 1K words retentative memory

Printer connection

Supported

Multi-Vendor support

Supported for several non-Omron PLCs.1

Backlight life

LED, min. 50,000 hours

1.Please contact Omron for a list of available drivers.
