View larger
C-M12-5P-2M AA053922C CM125P2M OMRON Straight M12 Cable, 5 Contacts, 2 m
C-M12-5P-2M
AA053922C
CM125P2M
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Special
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

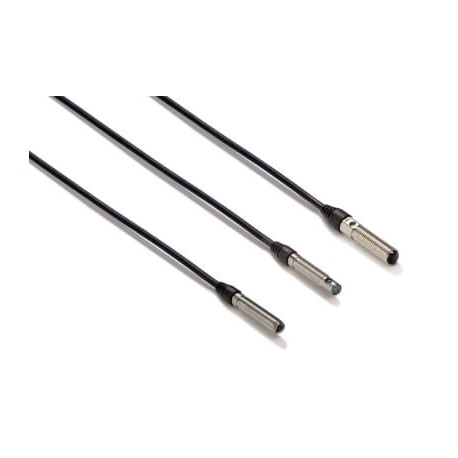

▲Miniature photoelectric sensors in M5 and M6 sized housing
The E3T-C family of miniature photoelectric sensors is the ideal solution when mounting space is crucial.
- axial and radial M5 sized through-beam sensors
- axial M6 sized diffuse-reflective sensors
- pre-wired models in stainless steel housing
Ordering information
M5 cylindrical housing
Sensor type | Sensing distance | Connection method | Operation mode | Order code | ||||
|---|---|---|---|---|---|---|---|---|
NPN output | PNP output | |||||||
| Through-beam (axial) | 1 m | - | - | 2 m | - | dark on | E3T-CT12 2M | E3T-CT14 2M |
| Through-beam (radial) | 500 mm | - | - | 2 m | - | E3T-CT22S 2M | E3T-CT24S 2M | |
M6 cylindrical housing
Sensor type | Sensing distance | Connection method | Operation mode | Order code | ||||
|---|---|---|---|---|---|---|---|---|
NPN output | PNP output | |||||||
| Diffuse-reflective | 50 mm (adjustable) | - | - | 2 m | - | light on | E3T-CD11 2M | E3T-CD13 2M |
Specifications
Item | E3T-CT1_ | E3T-CT2_ | E3T-CD1_ | |
|---|---|---|---|---|
Light source (wave length) | Red LED (630 nm) | Red LED (625 nm) | Infrared LED (870 nm) | |
Power supply voltage | 12 to 24 VDC±10%, ripple (p-p) 10% max. | |||
Protective circuits | Power supply reverse polarity protection, | |||
Response time | 0.5 ms max. | |||
Ambient temperature | Operating | -25 to 55°C | ||
Storage | -30 to 70°C (with no icing or condensation) | |||
Degree of protection | IEC 60529 IP65 | |||
Material | Case | SUS303 | ||
Display window | Polysulfone Epoxy | |||
Lens | Polysulfone | |||
