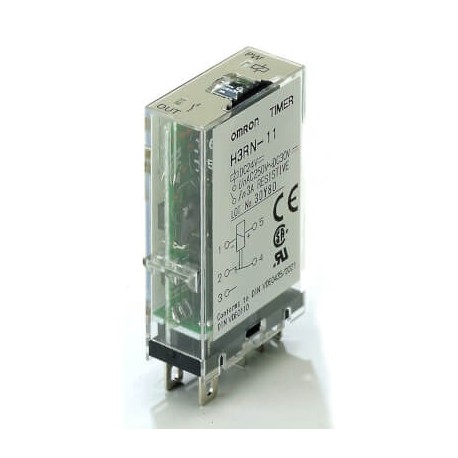

OMRON H3RN-1 24VDC H3RN-1 24VDC H3RN1002M H3RN124DC OMRON 16mm SPDT 0.1 s-10min 24vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3RN-1 24VDC H3RN1002M H3RN124DC OMRON 16mm SPDT 0.1 s-10min 24vdc

H3RN-1 24VDC

H3RN1002M

H3RN124DC

OMRON

10 Pcs.

16mm SPDT 0.1 s-10min 24vdc Timer, plug-in, 5-pin, multifunction, 0.1 s-10 m, SPDT, 3 A

Automation > Timer relay
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

H3RN-1 24VDC H3RN1002M H3RN124DC OMRON 16mm SPDT 0.1 s-10min 24vdc functions as a miniature timing relay deployed to execute time-delayed switching actions in control cabinets. These devices offer reliable interval management for automated equipment where space efficiency and dependable circuit timing are required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP40
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Silver
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Screw connection
  • Material contact (EF007544): Other not-copper alloys
  • Function delay on de-energization (EF003401): No
  • Suitable as remote control (EF003362): No
  • Outputs, reversible delayed/undelayed (EF006988): No
  • Function pulse shaping (EF003403): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Complete with socket (EF003359): No
  • Function star-delta (EF003380): No
  • Function floating contact on energization (EF003378): Yes
  • Clock function, starting with pause, variable (EF003365): No
  • Function delay-on energization (EF003374): Yes

More info

▲
TypeAnalogInstallation typeSocketFunctionsMulti-functionalSize15.5 mmTerminal typePlug-inOperating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start)Output typeRelayContact descriptionSPDTTime range0.1 s - 10 minSupply voltage DC21.6-26.4 VNumber of pin contact5
