View larger
Images are for illustrative purposes only. Please refer to data sheet for details

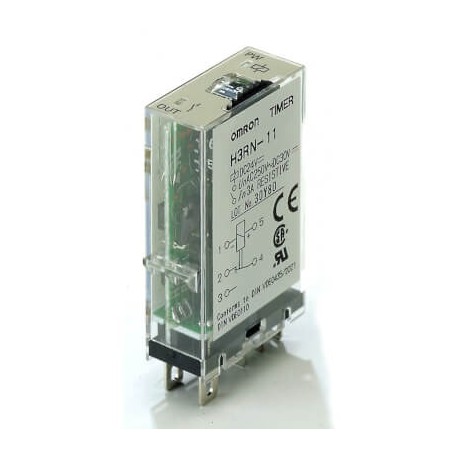

H3RN-1 24VAC H3RN1003R H3RN124AC OMRON 16mm SPDT 0.1 s-10min 12Vca
H3RN-1 24VAC
H3RN1003R
H3RN124AC
OMRON
10 Pcs.
16mm SPDT 0.1 s-10min 12Vca
Timer, plug-in, 5-pin, multifunction, 0.1 s-10 m, SPDT, 3 A
Automation > Timer relay
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeAnalogInstallation typeSocketFunctionsMulti-functionalSize15.5 mmTerminal typePlug-inOperating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start)Output typeRelayContact descriptionSPDTTime range0.1 s - 10 minSupply voltage AC21.6-26.4 VNumber of pin contact5
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Material of contact insert (EF008521) | Other |
| Degree of protection (IP) (EF005474) | IP40 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Silver |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Material contact (EF007544) | Other not-copper alloys |
| Function delay on de-energization (EF003401) | No |
| Suitable as remote control (EF003362) | No |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | No |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Function delay-on energization (EF003374) | Yes |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Suitable for front mounting (EF020288) | No |
| Clock function, starting with pulse, variable (EF003366) | Yes |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 2 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Max. starting current (EF001732) | 5 A |
| Number of outputs, delayed, change-over contact (EF006840) | 0 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 12.8 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 31.2 mm |
| Depth (EF000049) | 47.4 mm |
| Nominal current (EF000001) | 3 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 21.6 V |
| Operating voltage DC (EF008208) | 5 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 21.6 V |
| Time range (EF003384) | 0.1 s |
| Operating voltage AC 50 Hz (EF008206) | 5 V |
| Operating voltage AC 60 Hz (EF008207) | 5 V |
