OMRON CS1W-DA08-C CS1W-DA08-C CS1W0088C CS1WDA08C OMRON Module 8 Outputs analog I 1/4000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CS1W-DA08-C CS1W0088C CS1WDA08C OMRON Module 8 Outputs analog I 1/4000

CS1W-DA08-C

CS1W0088C

CS1WDA08C

OMRON

1 Pcs.

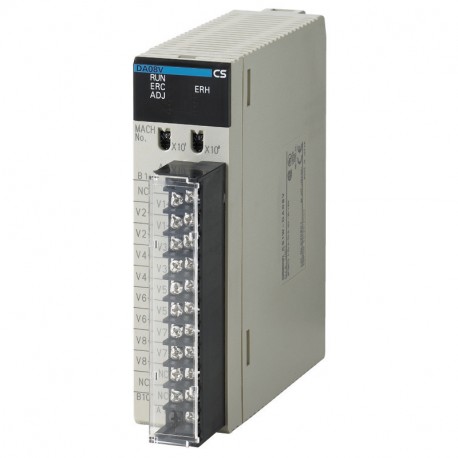

Module 8 Outputs analog I 1/4000 Analog output unit, 8 x outputs 4 to 20 mA, resolution 12 bit, screw terminals

Automation > PLC analogue I/O-module
CS1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications & ordering info

Ordering information

Points

Type

Ranges

Resolution

Accuracy1

Conversion
time

Remarks

Connection type

Order code

4

Analog input

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V,
4 to 20 mA

1/8,000

V: 0.2% of PV
I: 0.4% of PV

250 µs/point

Offset/gain adjustment, peak hold,
moving average, alarms

M3

CS1W-AD041-V1

8

Analog input

M3

CS1W-AD081-V1

16

Analog input

0.2% of PV

2 × MIL (34p.)

CS1W-AD161

4

Analog output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V,
4 to 20 mA

1/4,000

V: 0.3% of PV
I: 0.5% of PV

1 ms/point

Offset/gain adjustment

M3

CS1W-DA041

8

Voltage output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V

0.3% of PV

Offset/gain adjustment, output hold

M3

CS1W-DA08V

8

Current output

4 to 20 mA

0.5% of PV

M3

CS1W-DA08C

4 + 4

Analog in + output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V
(4 to 20 mA input)

1/8,000

V in: 0.2% of PV
I in: 0.4% of PV
out: 0.3% of PV

1 ms/point

Offset/gain adjustment, scaling, peak hold, moving average, alarms, output hold

M3

CS1W-MAD44

4

Process input

4 to 20 mA,
0 to 20 mA,
0 to 10 V,
-10 to 10 V,
0 to 5 V,
-5 to 5 V,
1 to 5 V,
1 to 1.25 V,
-1.25 to 1.25 V

1/64,000

0.05% of PV

5 ms/point

Configurable alarms, maintenance
functions, user-defined scaling, zero/span adjustment, square root, totaliser.

M3

CS1W-PDC11

8

Process input

-10 to 10 V,
0 to 5 V,
1 to 5 V,
4 to 20 mA

1/16,000

0.3% of PV

62.5 ms/point

Configurable alarms, zero/span adjustment, square root

M3

CS1W-PDC55

4

Thermocouple input

B, E, J, K, L, N, R, S, T,
U, WRe5-26, PLII,
-100 to 100 mV

1/64,000

0.05% of PV

5 ms/point

Configurable alarms (absolute +
rate-of-change), peak hold,
maintenance functions

M3

CS1W-PTS11

4

Resistance thermometer input

Pt50, Pt100 JPt100, Ni508.4

1/64,000

0.05% of PV

5 ms/point

Configurable alarms (absolute +
rate-of-change), peak hold,
maintenance functions

M3

CS1W-PTS12

4

Thermocouple input

B, J, K, L, R, S, T

0.1°C

0.3% of PV

62.5 ms/point

4 configurable alarm outputs

M3

CS1W-PTS51

4

Resistance thermometer input

Pt100, JPt100

0.1°C

0.3% of PV

62.5 ms/point

4 configurable alarm outputs

M3

CS1W-PTS52

8

Thermocouple input

B, J, K, L, R,S, T

0.1°C

0.3% of PV

31.2 ms/point

Configurable alarms per channel

M3

CS1W-PTS55

8

Resistance thermometer input

Pt100, JPt100

0.1°C

0.3% of PV

31.2 ms/point

Configurable alarms per channel

M3

CS1W-PTS56

4

2-Wire transmitter input

1 to 5 V,
4 to 20 mA

1/4,096

0.2% of FS

25 ms/point

Built-in power supply for transmitter, configurable alarms, square root,
rate-of-change, etc.

M3

CS1W-PTW01

8

Power transducer input

-1 to 1 mA,
0 to 1 mA

1/4,096

0.2% of FS

25 ms/point

Inrush current limiter, configurable alarms, averaging, etc.

M3

CS1W-PTR01

8

Power transducer input

-100 to 100 mV,
0 to 100 mV

1/4,096

0.2% of FS

25 ms/point

Inrush current limiter, configurable alarms, averaging, etc.

M3

CS1W-PTR02

4

Pulse rate input

20000 pps, voltage,
open collector, contact

up to
1/32,000

-

25 ms/point

Averaging, totaliser

M3

CS1W-PPS01

4

Isolated control output

1 to 5 V,
4 to 20 mA

1/4,000

I: 0.1% of FS
V: 0.2% of FS

25 ms/point

Output readback, high/low/rate limiting, disconnection alarm, zero/span
adjustment

M3

CS1W-PMV01

4

Isolated control output

-10 to 10 V,
0 to 10 V,
-5 to 5 V,
0 to 5 V,
-1 to 1 V,
0 to 1 V

1/4,000

0.1% of FS

10 ms/point

High/low/rate limiting, output hold,
zero/span adjustment

M3

CS1W-PMV02

Note: All analog I/O units are designated as special I/O units

1.Accuracy for Voltage and Current Inputs/Outputs as percentage of full scale and typical value at 25°C ambient temperature (Consult the operation manual for details)
Accuracy for Temperature Inputs/Outputs as percentage of process value and typical value at 25°C ambient temperature (Consult the operation manual for details)


ETIM for 144480 PLC's (EC001420)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Performance level according to EN ISO 13849-1 (EF007399) Level a
Type of electric connection (EF003961) Screw connection
SIL according to IEC 61508 (EF009889) None
Explosion safety category for gas (EF003997) None
Output, current (EF003212) Yes
Input, resistor (EF003206) No
Input, voltage (EF003205) No
Input, thermocouple (EF003208) No
Analogue inputs configurable (EF008518) No
Appendant operation agent (Ex ib) (EF004142) No
Input, current (EF003204) No
Analogue outputs configurable (EF008519) Yes
Appendant operation agent (Ex ia) (EF004141) No
Input, resistance thermometer (EF003207) No
Suitable for safety functions (EF001597) No
Input signal, configurable (EF003209) No
Output signal configurable (EF003214) Yes
Output, voltage (EF003213) Yes
Number of analogue inputs (EF001994) 0
Resolution of the analogue outputs (EF003577) 12 Bit
Number of analogue outputs (EF001995) 8
Width (EF000008) 35 mm
Height (EF000040) 130 mm
Depth (EF000049) 126 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
