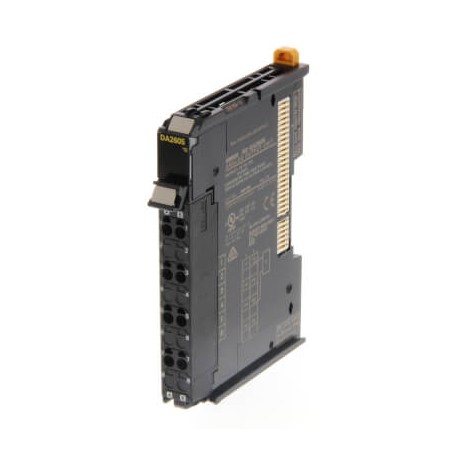

OMRON NX-DA2605 NX-DA2605 NX020043G NXDA2605 OMRON Unit NX 2 output of an analogue +/-10V 1/30000 10µs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-DA2605 NX020043G NXDA2605 OMRON Unit NX 2 output of an analogue +/-10V 1/30000 10µs

NX-DA2605

NX020043G

NXDA2605

OMRON

1 Pcs.

Unit NX - 2 output of an analogue +/-10V 1/30000 10µs 2 Analog Outputs, -10 to 10 V, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Unit NX acts as a specialized expansion component within modular machine automation systems, designed to handle precise signal conversion tasks between field devices and the central controller. These hardware modules help streamline complex industrial control architectures by managing specific inputs and outputs locally.

Pricing, availability and lead time are confirmed per enquiry through an RFQ for the Omron NX-DA2605.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs0Temperature input typeNoneLinear analog input typeNoneResolution of the analog inputs0 BitInput circuit typeNoneNumber of analog outputs2Linear analog output type-10 to 10 VResolution of the analog outputs15 BitConversion time0.02 ms/unitSignal processingSynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)70 g
