OMRON NX-AD3604 NX-AD3604 NX020028C NXAD3604 OMRON Unit NX 4 Inputs of an analogue +/-10V Differential 1/8000 250µs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-AD3604 NX020028C NXAD3604 OMRON Unit NX 4 Inputs of an analogue +/-10V Differential 1/8000 250µs

NX-AD3604

NX020028C

NXAD3604

OMRON

1 Pcs.

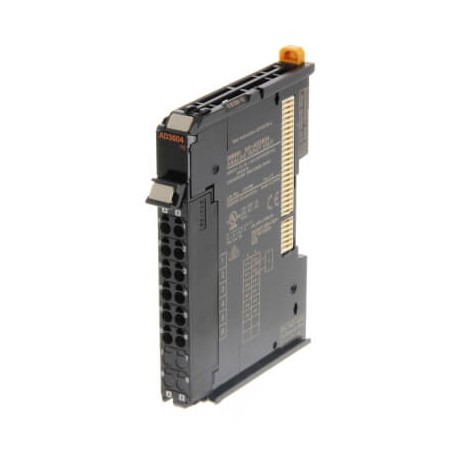

Unit NX - 4 Inputs of an analogue +/-10V Differential 1/8000 250µs 4 Analog Inputs, -10 to 10 V differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number NX-AD3604 (cataloged as NX-AD3604 NX020028C NXAD3604 OMRON Unit NX 4 Inputs of an analogue +/-10V Differential 1/8000 250µs) serves as a multi-channel analog input unit capable of measuring differential voltage signals within an automation network. It translates continuous voltage variables into reliable digital data for centralized process control and monitoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): Yes
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs4Temperature input typeNoneLinear analog input type-10 to 10 VResolution of the analog inputs13 BitInput circuit typeDifferentialNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time1 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)70 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
