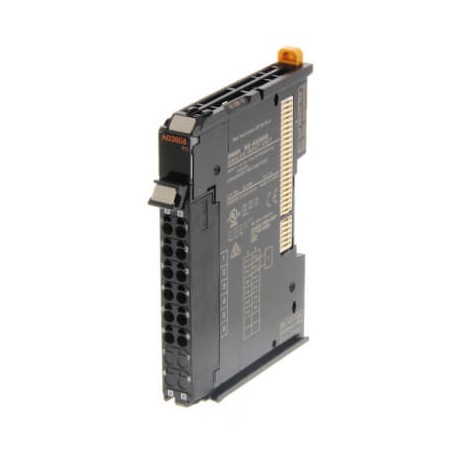

OMRON NX-AD3608 NX-AD3608 NX020029A NXAD3608 OMRON Unit NX 4 Inputs of an analogue +/-10V Differential 1/30000 10µs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-AD3608 NX020029A NXAD3608 OMRON Unit NX 4 Inputs of an analogue +/-10V Differential 1/30000 10µs

NX-AD3608

NX020029A

NXAD3608

OMRON

1 Pcs.

Unit NX - 4 Inputs of an analogue +/-10V Differential 1/30000 10µs 4 Analog Inputs, -10 to 10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron unit model NX-AD3608 functions as a differential analog input module engineered to process voltage signals with high resolution across automation networks. Industrial control systems rely on these high-speed modules to capture accurate differential measurements from sensitive measurement devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): Yes
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs4Temperature input typeNoneLinear analog input type-10 to 10 VResolution of the analog inputs15 BitInput circuit typeDifferentialNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time0.04 ms/unitSignal processingSynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)70 g
