View larger
Images are for illustrative purposes only. Please refer to data sheet for details

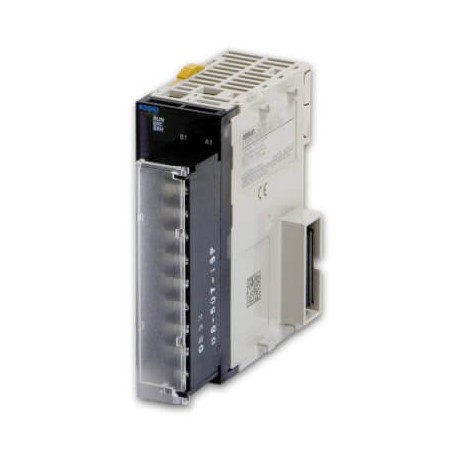

CJ1W-AD04U CJ1W9059M CJ1WAD04UNL OMRON Module 4 Analog Inputs Universal 1/12000
CJ1W-AD04U
CJ1W9059M
CJ1WAD04UNL
OMRON
1 Pcs.
Module 4 Analog Inputs Universal 1/12000
Universal analog input unit, 4 x inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA, thermocouple (K, J, T, L, R, S, B), Pt100, Pt1000, JPt1
Automation > PLC analogue I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
I/O systemCJ I/O BusExpansion unit typeSpecial I/O UnitType of moduleAnalog I/ONumber of analog inputs4Temperature input typeB, J, JPt100, K, L, Pt100, Pt1000, R, S, TLinear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mAResolution of the analog inputs14 BitNumber of analog outputs0Linear analog output typeNoneConversion time12000 ms/unitI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsProduct Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)230 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Output, current (EF003212) | No |
| Input, resistor (EF003206) | No |
| Input, voltage (EF003205) | Yes |
| Input, thermocouple (EF003208) | Yes |
| Analogue inputs configurable (EF008518) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Input, current (EF003204) | Yes |
| Analogue outputs configurable (EF008519) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Input, resistance thermometer (EF003207) | Yes |
| Suitable for safety functions (EF001597) | No |
| Input signal, configurable (EF003209) | Yes |
| Output signal configurable (EF003214) | No |
| Output, voltage (EF003213) | No |
| Number of analogue inputs (EF001994) | 4 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 31 mm |
| Resolution of the analogue inputs (EF003575) | 14 Bit |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
