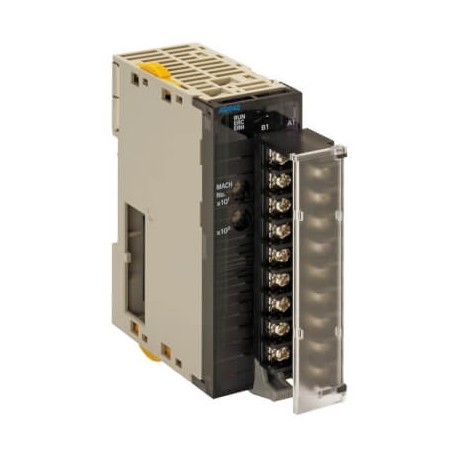

OMRON CJ1W-AD041-V1 CJ1W-AD041-V1 CJ1W9003E 136033 OMRON Module 4 Analog Inputs 1/8000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-AD041-V1 CJ1W9003E 136033 OMRON Module 4 Analog Inputs 1/8000

CJ1W-AD041-V1

CJ1W9003E

CJ1WAD041V1NL

OMRON

1 Pcs.

Module 4 analog Inputs, 1/8000 Analog input unit, 4 x inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, resolution 1:4000 / 8000, screw terminal

Automation > PLC analogue I/O-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An analog input module is commonly integrated into programmable logic controller architectures to receive continuous voltage or current signals from field instrumentation like transducers and sensors. This Omron CJ1W-AD041-V1 unit processes physical measurement variables into digital data for system monitoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of electric connection (EF003961): Screw connection
  • Output, current (EF003212): No
  • Input, resistor (EF003206): Yes
  • Input, voltage (EF003205): Yes
  • Input, thermocouple (EF003208): No
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): Yes
  • Analogue outputs configurable (EF008519): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Input, resistance thermometer (EF003207): No
  • Suitable for safety functions (EF001597): No
  • Input signal, configurable (EF003209): Yes
  • Output signal configurable (EF003214): No
  • Output, voltage (EF003213): No

More info

▲
I/O systemCJ I/O BusExpansion unit typeSpecial I/O UnitType of moduleAnalog I/ONumber of analog inputs4Temperature input typeNoneLinear analog input type-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mAResolution of the analog inputs13 BitNumber of analog outputs0Linear analog output typeNoneConversion time4000 ms/unitI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsProduct Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)150 g
