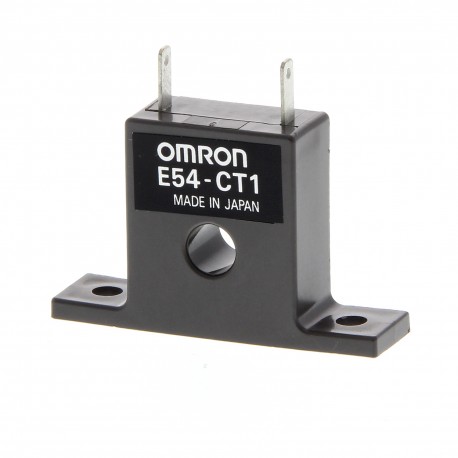

OMRON E54-CT1 E54-CT1 E54 9002H E54CT1 OMRON Current transformer 50A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E54-CT1 E54 9002H E54CT1 OMRON Current transformer 50A

E54-CT1

E54 9002H

E54CT1

OMRON

1 Pcs.

Current transformer 50A Current transformer for heater burnout detection (5.8mm dia)

Automation > Current transformer
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E54-CT1 is a specialized current transformer utilized in conjunction with controllers and power regulators to monitor single-phase alternating current loads. By stepping down current levels, these devices enable reliable thermal and electrical feedback loops in industrial automation panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Multi-channel power controller: 4
  • 400 to 480 VAC: G3ZA-4H403-FLK-UTU
  • 8: Not supported
  • 400 to 480 VAC: G3ZA-8A403-FLK-UTU
  • Current transformer (CT): 5.8 dia.
  • 12.0 dia.: E54-CT3
  • Power supply voltage: 100 to 240 VAC (50/60 Hz)
  • Operating voltage range: 85 to 264 VAC
  • Power consumption: 16 VA max.
  • Load power supply voltage: 100 to 240 VAC
  • Load power supply voltage range: 75 to 264 VAC
  • Manipulated variable input: 0.0 to 100.0% (via RS-485 communications)
  • Current transformer input: Single-phase AC, 0 to 50 A (primary current of CT)
  • Indications: LED indicators
  • Ambient operating temperature: -10 to 55°C (with no icing or condensation)
  • Ambient operating humidity: 25 to 85%

More info

▲
Features

Multi-channel power controller for smarter SSR usage

The G3ZA receives manipulated variables generated by control loops or manual settings via a simple-to-wire RS-485. It regulates the heater power with high precision by driving up to eight standard SSRs. Moreover, the offset control reduces peak power in the supply net.

  • Multi-channel power controller
  • Controls up to eight standard solid state relays
  • Easy integration with PLC
  • Compact size
  • Available with heater alarms (four channels) or without (eight channels)

Ordering information

Name

Number of control channels

Heater alarm

Load power supply voltage

Order code

Multi-channel power controller

4

Supported

100 to 240 VAC

G3ZA-4H203-FLK-UTU

400 to 480 VAC

G3ZA-4H403-FLK-UTU

8

Not supported

100 to 240 VAC

G3ZA-8A203-FLK-UTU

400 to 480 VAC

G3ZA-8A403-FLK-UTU

Accessories

Name

Hole diameter

Order code

Current transformer (CT)

5.8 dia.

E54-CT1

12.0 dia.

E54-CT3

Specifications

Item

Load power supply voltage range

100 to 240 VAC

400 to 480 VAC

Power supply voltage

100 to 240 VAC (50/60 Hz)

Operating voltage range

85 to 264 VAC

Power consumption

16 VA max.

Load power supply voltage

100 to 240 VAC

400 to 480 VAC

Load power supply voltage range

75 to 264 VAC

340 to 528 VAC

Manipulated variable input

0.0 to 100.0% (via RS-485 communications)

Current transformer input

Single-phase AC, 0 to 50 A (primary current of CT)

Trigger output

One voltage output for each channel, 12 VDC ±15%, max. load current: 21 mA
(with built-in short-circuit protection circuit)

Alarm output

NPN open collector, one output
Max. applicable voltage: 30 VDC
Max. load current: 50 mA
Residual voltage: 1.5 V max.
Leakage current: 0.4 mA max.

Indications

LED indicators

Ambient operating temperature

-10 to 55°C (with no icing or condensation)

Ambient operating humidity

25 to 85%

Storage temperature

-25 to 65°C (with no icing or condensation)

Performance

Current indication accuracy

±3 A (for models with heater burnout detection)

Insulation resistance

100 MΩ min. (at 500 VDC) between primary and secondary

Dielectric strength

2,000 VAC, 50/60 Hz for 1 min between primary and secondary

Vibration resistance

Vibration frequency: 10 to 55 Hz, acceleration: 50 m/s2in X, Y, and Z directions

Shock resistance

300 m/s2three times each in six directions along three axes

Weight

Approx. 200 g (including terminal cover)

Degree of protection

IP20

Memory protection

EEPROM (non-volatile memory) (number of writes: 100,000)

Installation environment

Overvoltage category III, pollution degree 2 (according to IEC 60664-1)

Approved standards

UL508 (Listing), CSA22.2 No. 14
EN50178
EN61000-6-4 (EN55011: 1998, A1: 1999 Class A, Group 1)
EN61000-6-2: 2001

Size in mm (H×W×D)

76×45×111

Optimum cycle control

Optimum cycle control is performed by driving SSRs according to load power detection and trigger signals. (Zero-cross SSRs are used.)

Noise is suppressed while ensure high-speed response by turning outputs ON and OFF each half cycle to achieve high-precision temperature control.
