E39-L117 E39 2190G E39L117 OMRON Support mounting bracket E3T-S
E39-L117
E39 2190G
E39L117
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron part number E39-L117 is a support mounting bracket E3T-S designed to secure photoelectric and proximity sensors firmly onto industrial frames and conveyor structures. Mounting hardware ensures that detection devices maintain precise alignment despite mechanical vibration and continuous operational stress. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Timer: E3JM-10M4T-NN
- DC SSR: −
- Timer: E3JM-10S4T-NN
- Retro-reflective with MSR function: E39-R1 (provided)
- Timer: E3JM-R4M4T
- DC SSR: −
- Timer: E3JM-R4S4T
- Timer: E3JM-DS70M4T
- DC SSR: −
- Timer: E3JM-DS70S4T
- Sensing distance: 10 m
- Standard sensing object: Opaque: 14.8-mm dia. min.
- Light source (wavelength): Infrared LED (950 nm)
- Power supply voltage: 12 to 240 VDC±10%, ripple (p-p): 10% max. 24 to 240 VAC±10%, 50/60 Hz
- Response time: Relay output; DC SSR output: (E3JM-⬜⬜S4 (T)(-⬜) models) Operate or reset: 5 ms max.
More info

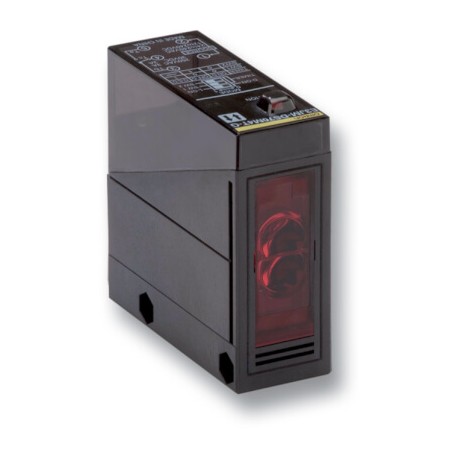

▲Multi voltage photoelectric sensor in plastic housing with timer function
The square sized E3JM family provides 12 to 240 VDC and 24 to 240 VAC power supply voltage, an enhanced sensing distance and a timer function.
- 12 to 240 VDC and 24 to 240 VAC supply voltage
- Relay or solid state relay output
- Timer function
Ordering information
Sensing method | Appearance | Connection | Sensing distance | Operation mode | Output | Functions | Order code | ||
|---|---|---|---|---|---|---|---|---|---|
| Conduit socket thread size: PF1/2 | Conduit socket thread size: PG13.5 | Conduit socket thread size: | |||||||
| Through-beam (Emitter + | Terminal block | 10 m | Light-ON | Relay | − | E3JM-10M4-NN | E3JM-10M4-G-NN | E3JM-10M4-NN-US | |
Timer | E3JM-10M4T-NN | E3JM-10M4T-G-NN | E3JM-10M4T-NN-US | ||||||
DC SSR | − | E3JM-10S4-NN | E3JM-10S4-G-NN | E3JM-10S4-NN-US | |||||
Timer | E3JM-10S4T-NN | E3JM-10S4T-G-NN | E3JM-10S4T-NN-US | ||||||
Retro-reflective | E39-R1 (provided) | 4 m | Relay | − | E3JM-R4M4 | E3JM-R4M4-G | E3JM-R4M4-US | ||
Timer | E3JM-R4M4T | E3JM-R4M4T-G | E3JM-R4M4T-US | ||||||
DC SSR | − | E3JM-R4S4 | E3JM-R4S4-G | E3JM-R4S4-US | |||||
Timer | E3JM-R4S4T | E3JM-R4S4T-G | E3JM-R4S4T-US | ||||||
Diffuse-reflective | 700 mm | Relay | − | E3JM-DS70M4 | E3JM-DS70M4-G | E3JM-DS70M4-US | |||
Timer | E3JM-DS70M4T | E3JM-DS70M4T-G | E3JM-DS70M4T-US | ||||||
DC SSR | − | E3JM-DS70S4 | E3JM-DS70S4-G | E3JM-DS70S4-US | |||||
Timer | E3JM-DS70S4T | E3JM-DS70S4T-G | E3JM-DS70S4T-US | ||||||
Specifications
Sensing method | Through-beam model | Retro-reflective model | Diffuse-reflective model | |
|---|---|---|---|---|
Item | Model | E3JM-10⬜4(T)-NN E3JM-10⬜4(T)-G-NN E3JM-10⬜4(T)-NN-US | E3JM-R4⬜4(T) E3JM-R4⬜4(T)-G E3JM-R4⬜4(T)-US | E3JM-DS70⬜4(T) E3JM-DS70⬜4(T)-G E3JM-DS70⬜4(T)-US |
Sensing distance | 10 m | 4 m (When using E39-R1) | White paper (200 × 200 mm): | |
Standard sensing object | Opaque: 14.8-mm dia. min. | Opaque: 75-mm dia. min. | --- | |
Light source (wavelength) | Infrared LED (950 nm) | Red LED (660 nm) | Infrared LED (950 nm) | |
Power supply voltage | 12 to 240 VDC±10%, ripple (p-p): 10% max. 24 to 240 VAC±10%, 50/60 Hz | |||
Response time | Relay output | (E3JM-⬜⬜M4 (T)(-⬜) models) Operate or reset: 30 ms max. | ||
DC SSR output | (E3JM-⬜⬜S4 (T)(-⬜) models) Operate or reset: 5 ms max. | |||
Ambient temperature range | Operating: −25°C to 55°C, | |||
Degree of protection | IEC 60529: IP66 | |||
Connection method | Terminal block | |||
Material | Case | ABS (Acrylonitril Butadiene Styrene) | ||
Lens | Methacrylic resin | |||
Cover | Polycarbonate | |||
Mounting Bracket | Iron | |||
