View larger
Images are for illustrative purposes only. Please refer to data sheet for details

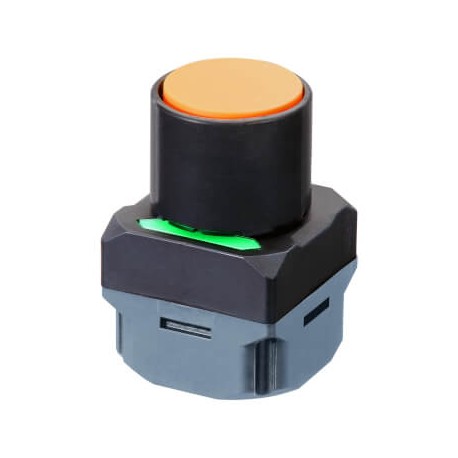

A2W-TB-WC1 EU2YB A2W 0089H A2WTBWC1EU2YB OMRON Wireless Full Protection Button, Dial, 34.4 mm, EU Frequency ..
A2W-TB-WC1 EU2YB
A2W 0089H
A2WTBWC1EU2YB
OMRON
1 Pcs.
Wireless Full Protection Button, Dial, 34.4 mm, EU Frequency 868.3 MHz, Button/Flange Colors: Yellow - Black
Wireless Full guard button, dia. 34.4 mm, EU frequency 868.3 MHz, Button/flange colors yellow-black
Automation > Front element for push button
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationWireless Pushbutton switchAreaEurope (EU)Bezel materialPlasticColorYellowBezel colorBlackFrequency868.3 MHzProfileFull guardReset methodMomentaryShapeRoundSize34 mmSuitable for illumination
| Feature Name | Feature Value |
|---|---|
| Colour front ring (EF002429) | Black |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | Yellow |
| Degree of protection (NEMA), front side (EF011961) | Other |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP), front side (EF003118) | IP65 |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Labelled (EF001537) | No |
| With protective cover (EF005500) | No |
| Switching function latching (EF007447) | No |
| Suitable for lighting (EF001142) | Yes |
| Number of command positions (EF001372) | 2 |
