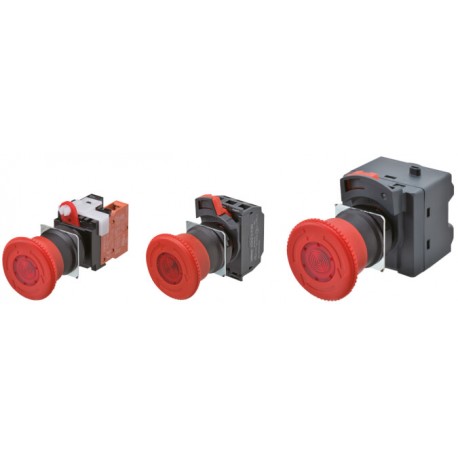

Images are for illustrative purposes only. Please refer to data sheet for details
A22Z-B201Y A22 0117B A22ZB201Y OMRON Control box assembly,1 hole, yellow, for emergency stop
A22Z-B201Y
A22 0117B
A22ZB201Y
OMRON
1 Pcs.
Control box assembly,1 hole, yellow, for emergency stop
Assembled control box,1 hole, yellow, for emergency stop
Control box enclosure, one hole, yellow, for emergency stop, depth 60 mm
Automation > Enclosure for control circuit devices
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A22Z-B201Y A22 0117B A22ZB201Y OMRON Control box assembly,1 hole, yellow, for emergency stop serves as a dedicated safety enclosure designed to house emergency stop actuators prominently on automated machinery. High-visibility yellow housings ensure operators can locate critical safety shutdown controls instantly during an emergency.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 90-dia. black letters on yellowback-ground: A22Z-3476-1
- 9 to 11 dia.: A22Z-3500-2
- One Spacer Unit is included.: A22Z-EG21
- Two Spacer Units is included.: A22Z-EG22
- Construction type housing: Surface mounting housing
- Degree of protection (IP): IP67
- Housing material: Plastic
- Colour housing cover: Yellow
- Width: 68 mm
- Height: 68 mm
- Depth: 60 mm
- Number of command positions: 1
- Diameter openings: 22.1 mm
More info
▲- Direct opening mechanism to open the circuit when the contact welds
- With a latching mechanism to prevent operating errors
- Lock lever for easily mounting and removing the unit
- Use 25-dia. ring to install in 25-dia. panel cutouts.*
- In a model equipped with Lock-lever-linked contact function, the improper installation of the switch unit can be detected. (A22NE-PD)
Accessories
Ordering information
Commonto Screw Terminal Block types (A22E)/Push-in Plus Terminal Blocktypes (A22NE-P/A22NE-PD) (Order Separately)
| Item | Appearance | Classification | Remarks | Order code | |
|---|---|---|---|---|---|
| Legend Plates for Emergency Stop | 60-dia. black letters on yellowback-ground | Used in combination with the washer rubber when the level of protection is to be met between panels. | A22Z-3466-1 | ||
| 90-dia. black letters on yellowback-ground | A22Z-3476-1 | ||||
| 60-dia. black letters on yellowbackground | Cannot be used in combination with the Control Boxes. Used in combination with the washer rubber when the level of protection is to be met between panels. | A22Z-3466-2 | |||
| Hole Plug | Round | Used for covering the panel cutouts for future panel expansion. Black color. | A22Z-3530 | ||
| Connectors | Applicable cable diameter | 7 to 9 dia. | Plastic connector used to extenda cable from the Switch Box. | A22Z-3500-1 | |
| 9 to 11 dia. | A22Z-3500-2 | ||||
| 25-dia. Ring | – | Use when mounting to a panel with a 25-dia. hole. Material: Rubber, Level of protection: IP65 2 Switches with an IP69K degree of protectiondo not support the 25-dia. | A22Z-R25 | ||
| 30-dia. Resin Attachment | – | Use when mounting to a panel with a 30-dia. hole. A rubber washer (A22Z-R) is provided with the product. | A22Z-A30 | ||
| Lock Ring | – | The body is equipped with a Lock Ring. This Lock Ring is used when a more secure lock feature is -required. | A22Z-3360 | ||
| Tightening Tool | – | Used for tightening the mounting ring from the back side of the panel, and for removing the cap in lighted models. | A22Z-3905 | ||
| E-stop Shroud for EMO, Yellow | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG1 | ||
| E-stop Shroud for EMO, Yellow | Legend plate for EMERGENCY OFF is not -included. | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMO indication. (for -emergency off) 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG10 | ||
| E-stop Shroud for EMS, White | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY STOP come as a set. Use with an A22E Emergency Stop Switch. (for emergency stop) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG1-W | ||
| E-stop Shroud for EMS, White | Legend plate for EMERGENCY STOP is not -included. | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMS indication. (for emergency stop) 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG10-W | ||
| E-stop Shroud, Yellow | Spacer Unit is not included. | SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2-compatible Shroud. (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. Use together with an A22E Emergency Stop Switch. | A22Z-EG2 | ||
| One Spacer Unit is included. | A22Z-EG21 | ||||
| Two Spacer Units are included. | A22Z-EG22 | ||||
| E-stop Shroud for EMO, Yellow | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch. (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG3 | ||
| Rubber Packing | – | Used together with accessories. Contains 10 packings. | A22Z-R | ||
Note:
- Accessories forA22Z-EG1: one “EMERGENCY OFF” label, two rubber packings, and onelock ring
- Accessories for A22Z-EG10: one rubber packing and one lock ring(without label)
