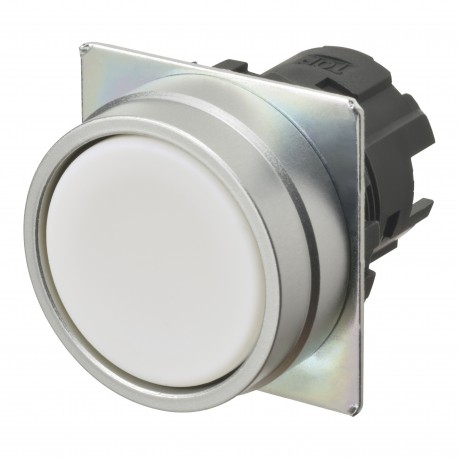

OMRON A22NZ-MNM-NWA A22NZ-MNM-NWA A2270076C 660246 OMRON Pulsa.22mm, Metal, flush, MOMENTARY, Opaque WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-MNM-NWA A2270076C 660246 OMRON Pulsa.22mm, Metal, flush, MOMENTARY, Opaque WHITE

A22NZ-MNM-NWA

A2270076C

A22NZMNMNWA

OMRON

20 Pcs.

Press.22mm, Metal, FLUSH, MOMENTANEO, Opaque WHITE Pushbutton A22NZ Ø22, bezel brushed metal, FLAT, MOMENTARY, CAP COLOR Opaque WHITE,

Automation > Front element for push button
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron pushbutton switch provides a sturdy manual control interface designed for insertion into standard panel cutouts to govern electrical circuits. Industrial facilities utilize these flush profile actuators on control consoles for dependable day-to-day machine management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Pushbutton switch
  • Bezel material: Brushed metal
  • Color: White
  • Number of switch positions: 2
  • Profile: Flat
  • Reset method: Momentary
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Stainless steel
  • Type of button (EF001546): Flat
  • Colour button (EF000190): White
  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes

More info

▲

Specifications

ApplicationPushbutton switch
Bezel materialBrushed metal
ColorWhite
Number of switch positions2
ProfileFlat
Reset methodMomentary
ShapeRound
Size22 mm
Suitable for illumination
Transparent

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
