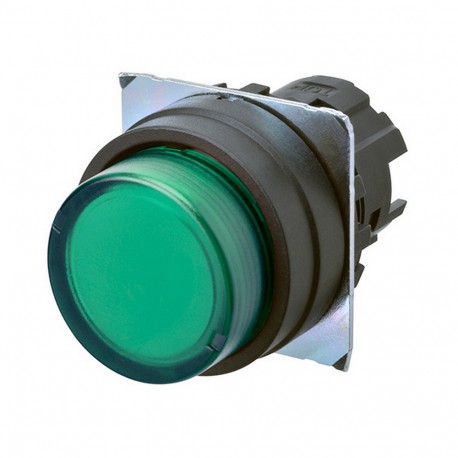

OMRON A22NZ-BPM-TGA A22NZ-BPM-TGA A2270026G A22NZBPMTGA OMRON Pushbutton, A22NZ, ø 22, plastic bezel, projected, action momentar.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-BPM-TGA A2270026G A22NZBPMTGA OMRON Pushbutton, A22NZ, ø 22, plastic bezel, projected, action momentar..

A22NZ-BPM-TGA

A2270026G

A22NZBPMTGA

OMRON

10 Pcs.

Pushbutton, A22NZ, ø 22, plastic bezel, projected, action momentary, color of cover orange transparent, illuminated Pushbutton, A22NZ, diameter of 22, plastic bezel, projected, momentary action, transparent orange cap color, illuminated Pushbutton A22NZ 22 dia., bezel plastic, projected, momentary, cap color transparent green, lighted

Automation > Front element for push button
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

ApplicationPushbutton switch
Bezel materialPlastic
ColorGreen
Number of switch positions2
ProfileProjected
Reset methodMomentary
ShapeRound
Size22 mm
Suitable for illumination
Transparent

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-L-GAPushbutton accessory A22NZ, Green LED Lamp 6 VDC
A22NZ-L-GBPushbutton accessory A22NZ, Green LED Lamp 12 VAC/DC
A22NZ-L-GCPushbutton accessory A22NZ, green LED Lamp 24 VAC/DC
A22NZ-L-GDPushbutton accessory A22NZ, Green LED Lamp 100/110/120 VAC
A22NZ-L-GEPushbutton accessory A22NZ, green LED Lamp 200/220/230 VAC
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
A22NZ-T-BPushbutton accessory A22NZ, Lighting Unit 12 VAC/VDC
A22NZ-T-CPushbutton accessory A22NZ, Lighting Unit 24 VAC/VDC
A22NZ-T-DPushbutton accessory A22NZ, Lighting Unit 100/110/120 VAC
A22NZ-T-EPushbutton accessory A22NZ, Lighting Unit 200/220/230 VAC

ETIM for 665541 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour front ring (EF002429) Black
Type of button (EF001546) High
Colour button (EF000190) Green
Degree of protection (NEMA), front side (EF011961) 13
Construction type lens (EF006253) Round
Material front ring (EF005972) Plastic
Degree of protection (IP), front side (EF003118) IP66
With front ring (EF006014) Yes
Spring-return (EF001407) Yes
Labelled (EF001537) No
With protective cover (EF005500) No
Switching function latching (EF007447) No
Suitable for lighting (EF001142) Yes
Height opening (EF004778) 22 mm
Width opening (EF004565) 22 mm
Hole diameter (EF000079) 22 mm
Number of command positions (EF001372) 2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
